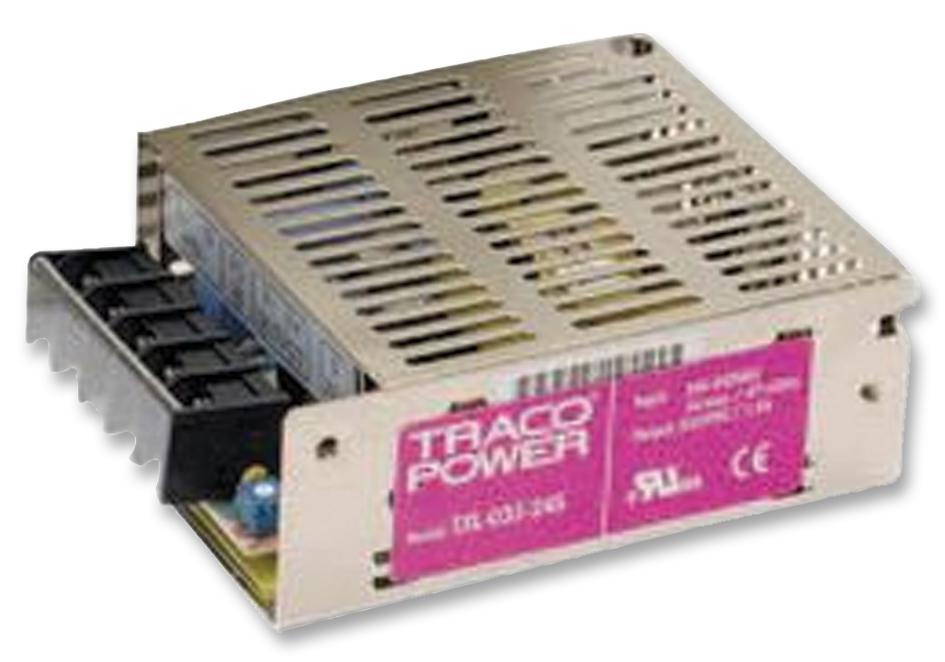

TRACO POWER TXL06012S Industrial Power Supply
The TXL series by Traco Power offers enclosed, industrial-grade power supplies with a compact metal case and screw terminal connections for easy installation. Designed for cost-sensitive applications, these units feature universal input from 85 to 264 VAC, compliance with European EMC standards, and have Protections for short circuits and overvoltage. They deliver up to 60W with output voltages from 5V to 24V, achieving efficiencies up to 84%. Suitable for industrial automation, instrumentation, and control systems, these power supplies are reliable with a 3-year warranty and internal safety approvals.
TRACO POWER TXL06012S Industrial Power Supply Specifications:
- Input voltage range: 85 - 264 VAC, 88 - 264 VAC typical; 125 - 375 VDC
- Input frequency: 47 - 63 Hz
- Max input current at 100 VAC: 1.6 A
- Output power: 50 W to 60 W depending on model
- Output voltages: 5V, 12V, 15V, 24V
- Output current: up to 10A for 5V model, 5A for 12V, 4A for 15V, 2.54A for 24V
- Efficiency: up to 84%
- Output voltage adjustment: ±10%
- Ripple & noise: 70-150 mVp-p depending on model
- Isolation voltage: input/output 3000 VAC, input/PE 1500 VAC, output/PE 500 VAC
- Operating temperature: -40°C to +85°C, derating above +50°C at 2.5%/K
- Humidity: 20-90% RH (non-condensing)
- Dimensions: Compact metal case, approx. 96mm x 50mm x 30mm
- Protection: Short circuit, overvoltage, overload with hiccup mode recovery
- Safety: UL, CB, EN 60950-1, RoHS compliant
- Weight: approximately 0.34 kg
Buy the Buy Traco Power AC/DC Enclosed Power Supply Part Number TXL06012S Online
Experience the reliability and efficiency of the Traco Power TXL series power supply. Designed with a compact metal case, universal input, and protections for short circuits and overvoltage, this unit provides stable 50/60W power for industrial, automation, and control applications. Its high efficiency up to 84%, safety approvals, and 3-year warranty ensure peace of mind. Easily installed via screw terminal connections, the TXL series is ideal for cost-sensitive environments requiring dependable power in a compact form factor.
Buy Traco Power TXL06012S now and ensure reliable power with high efficiency suitable for industrial automation and control systems.
