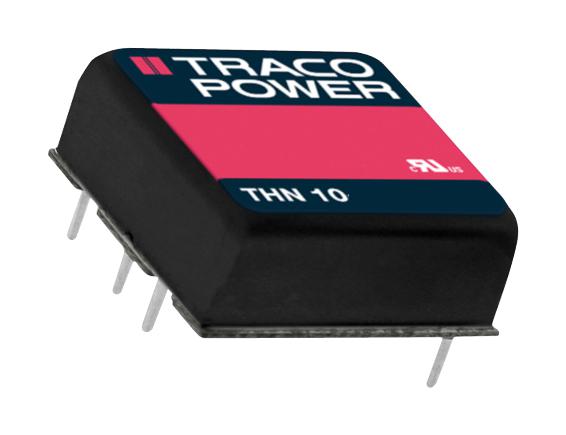

TRACO POWER THN104822WIR Rugged DC/DC Converter
The THN 10WIR series offers ruggedized 10 Watt DC/DC converters designed for harsh environments, including railway applications. With wide 4:1 input voltage ranges (9-36 V, 18-75 V, 36-160 VDC), high efficiency up to 90%, and extensive approvals like EN 50155 and EN 61373, these compact converters ensure reliable power conversion. Built-in EMI filtering, short-circuit protection, remote On/Off, and output voltage trim make them suitable for transportation, industrial, and engineering systems operating from -40°C to +80°C, supporting safety and fire compliance.
TRACO POWER THN104822WIR Rugged DC/DC Converter Specifications:
- Input Voltage: 9-36 V, 18-75 V, 36-160 VDC
- Input Current at no load: 6-10 mA
- Surge Voltage: 60V (24V models), 100V (48V models), 185V (140V models)
- Output Voltage Adjustment: +10% to -10%/+20%
- Output Power: 10 W (max)
- Output Voltage Tolerance: ±1%
- Regulation: 0.2% (single output models), 0.5% (dual output models)
- Ripple and Noise: 75mVp-p typical across models
- Isolation Voltage: 3000 VDC, 1 GΩ resistance
- Operating Temperature: -40°C to +80°C with derating
- Efficiency: Up to 90%
- Protection: Overload, overvoltage, short circuit
- Remote On/Off Control: 3-15 VDC or open circuit
- Dimensions: 25.4 mm x 25.4 mm x 11.4 mm
- Housing: Metal, shielded
- Compliance: EN 50155, EN 61373, EN 45545-2 fire behavior
- Safety Standards: IEC 62368-1, UL 62368-1
- Certifications: UL Listed, CE
Buy the TracoPower THN 10WIR – Reliable Power Conversion for Industrial Applications
Purchase the TracoPower THN 10WIR series online today to benefit from high efficiency, wide input voltage range, and railway-certified reliability. Perfect for harsh environments requiring stable power in industrial and transportation systems, these compact converters support temperatures from -40°C to +80°C, with protections against overload, short circuits, and overvoltage. With built-in EMI filters, remote On/Off, and adjustable output, they simplify integration into your project, ensuring safety, durability, and compliance for reliable operation in critical applications.
Order your TracoPower Series THN 10WIR converter today and ensure dependable power for your transportation and industrial projects.
Frequently Asked Questions
Where can I buy TRACO POWER THN104822WIR?
You can click on the BUY or RFQ button to purchase THN104822WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THN104822WIR?
You can download the THN104822WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THN104822WIR?
TRACO POWER
