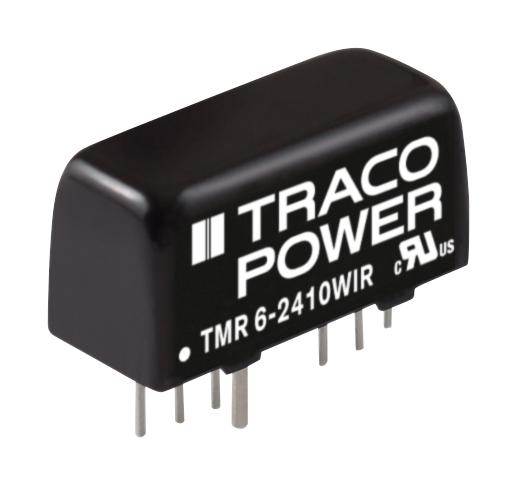

TRACO POWER TMR64813WIR DC/DC Converter
The TMR 6WIR series consists of 6-watt DC/DC converters in a compact SIP-8 metal case, designed for space-constrained applications. With wide input voltage ranges up to 75VDC and up to 80°C environment operation at half load, these fully regulated, isolated power supplies feature EN 50155 and UL 60950-1 certifications, 3000 VDC isolation, and remote On/Off. They provide overload, short circuit protection, and operate with high efficiency across various voltages, making them suitable for railway, industrial, and automation applications requiring reliable, compact power conversion solutions.
TRACO POWER TMR64813WIR DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC and 18-75 VDC
- Output Voltage Options: 3.3 V, 5 V, 9 V, 15 V, 24 V, ±5 V, ±12 V, ±15 V
- Maximum Output Current: 1500 mA to 600 mA depending on model
- Efficiency: 80% to 88%
- Isolation Voltage: 3000 VDC (input to output), 1500 VDC (input/ground to case)
- Operating Temperature: -40°C to +80°C at full load, derating above 60°C
- Power: 6 Watts with fully regulated, isolated outputs
- Protection: Overload, short circuit, and remote On/Off control
- Standards: EN 50155, UL 60950-1, ISO 9001 certified manufacturing
- Switching Frequency: Approx. 580 kHz
- Physical: SIP-8 metal case, copper casing, UL94 V-0 rated potting material
- Dimensions and Weight: Approx. 22 x 20 x 10 mm, weighing about 5.9 grams
Buy the Buy Traco Power TMR 6WIR Series Part Number 64813WIR Online
Purchase the Traco Power TMR 6WIR series online today and benefit from a compact design, high efficiency, and robust safety certifications suitable for demanding industrial and railway applications. These fully regulated, high-quality converters feature wide input ranges, high isolation voltage, overload and short circuit protection, and remote On/Off control, ensuring reliable performance in space-limited environments. Shop now to secure versatile power solutions that provide peace of mind, durability, and optimal efficiency for your demanding automation, transportation, or industrial power needs.
Buy Traco Power TMR 64813WIR now and experience unmatched reliability and high efficiency in compact power conversion solutions.
