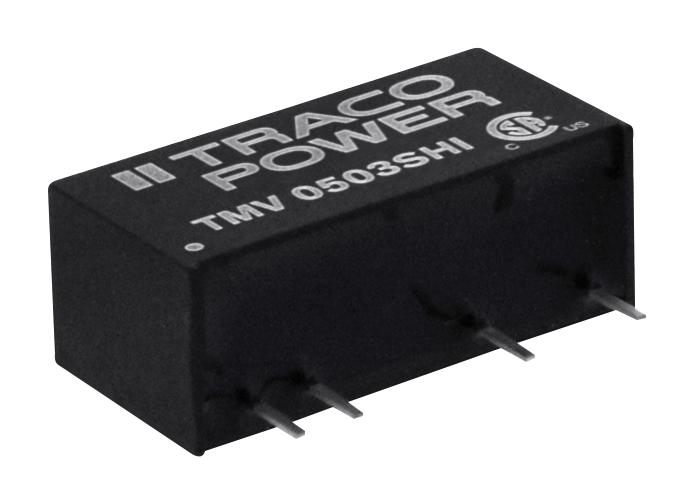

TRACO POWER TMV1203SHI High-Isolation DC/DC Converter
The TMV-HI series is a set of 1 Watt non-regulated DC/DC converters designed for high I/O-isolation up to 5200 VDC in a compact SIP-7 package. Ideal for IGBT applications, these converters operate from -40°C to +95°C, providing reliable power conversion with up to 79% efficiency. They feature various input/output voltage configurations, short circuit protection, and excellent electrical performance including low ripple, noise, and high isolation voltage, making them suitable for industrial, automation, and control systems requiring stable DC power sources.
TRACO POWER TMV1203SHI High-Isolation DC/DC Converter Specifications:
- Input voltage range: 3.3 V to 24 VDC, surge voltage up to 30 V
- Output voltage options: 3.3 V, 5 V, 9 V, 12 V, 15 V, 24 V with ±5% accuracy
- Output current: up to 303 mA depending on model
- Efficiency: up to 80%
- Isolation voltage: 5200 VDC (test voltage), 5700 Vpk (test voltage)
- Isolation capacity: 7 pF
- Isolation resistance: >10 GΩ
- Operating temperature: -40°C to +95°C
- Power dissipation: 450 mW max
- Switching frequency: 100 kHz typical
- Humidity: 95% RH non-condensing
- Dimensions: Compact SIP-7 package, weight 2.4 g
- Soldering temperature: Max 260°C for 10 seconds
- Reliability: MTBF >2,000,000 hours
- Safety standards: UL, CSA, IEC approved
- Construction: Non-conducting UL 94V-0 rated FR4 case
Buy the TRACO Series TMV-HI DC/DC Converter: TMV1203SHI
Order the TRACO TMV1203SHI today and experience reliable power conversion with high I/O isolation up to 5200 VDC. This ultra-compact 1 Watt converter is ideal for industrial, automation, and control applications. Its wide operating temperature from -40°C to +95°C, low ripple, and noise ensure stable performance. With safety certifications, automatic short circuit protection, and an MTBF over 2 million hours, this converter guarantees durability and consistent operation. Easily order online for fast delivery and effective power solutions.
Get TRACO TMV1203SHI today—built for high isolation, compact size, and reliable industrial power conversion.
Frequently Asked Questions
Where can I buy TRACO POWER TMV1203SHI?
You can click on the BUY or RFQ button to purchase TMV1203SHI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMV1203SHI?
You can download the TMV1203SHI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMV1203SHI?
TRACO POWER
