TRACO POWER TDL24811 DC/DC Converter
The TDL 2 series from TracoPower comprises 2-watt regulated DC/DC converters designed for compact applications in industrial and electronic equipment. These converters come in a DIP package measuring 14mm by 14mm by 8mm, supporting a wide input voltage range with a 2:1 ratio. They offer multiple output voltages such as 3.3V, 5V, 12V, 15V, and dual outputs including ±5V, ±12V, and ±15V, with maximum currents up to 400mA. The converters feature efficiency up to 87%, minimal ripple and noise at 70mVp-p, automatic short circuit protection, and high isolation voltage of 1500VDC for 60 seconds, ensuring safe and reliable operation across -40°C to 70°C. Their design adheres to UL 60950-1 and IEC/EN 60950-1 standards, making them suitable for demanding industry applications with a 3-year warranty.
TRACO POWER TDL24811 DC/DC Converter Specifications:
- Input Voltage Range: Wide 2:1 ratio, supporting up to 36VDC
- Output Voltages: 3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V
- Output Currents: Up to 400mA (single), ±200mA (dual outputs)
- Efficiency: Up to 87%
- Ripple and Noise: 70mVp-p (20 MHz bandwidth)
- Isolation Voltage: 1500VDC for 60 seconds
- Operating Temperature Range: -40°C to +70°C
- Switching Frequency: ≥100 kHz
- Short Circuit Protection: Automatic recovery
- Material: Rigid FR4 case, silicone potting, tinned copper pins
- Size: 14mm x 14mm x 8mm
- Soldering Temperature: Max 260°C for 10 seconds
- Certifications: UL 60950-1, IEC/EN 60950-1
- Reliability: MTBF >4,226,000 hours

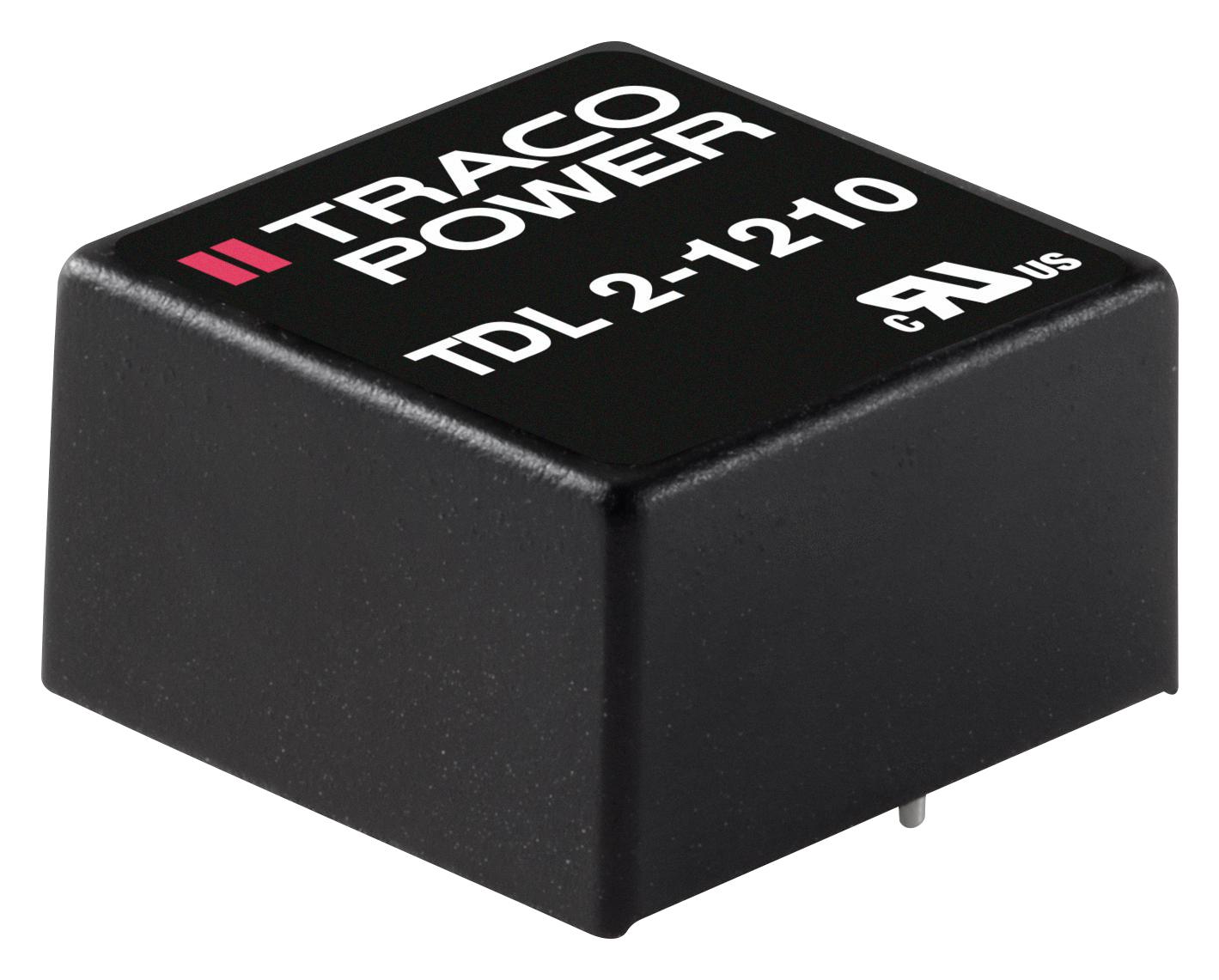

Buy the Buy TracoPower TDL 2 Series Part Number TDL24811 Online
Secure your power conversion needs by purchasing the TracoPower TDL 2 series DC/DC converters online. These compact, reliable, and highly efficient converters support wide input voltage ranges and deliver stable output voltages with minimal ripple and noise. Featuring high isolation voltage of 1500VDC, automatic short circuit protection, and certifications compliant with UL and IEC standards, they are perfect for industrial and electronic device applications. Order now to ensure dependable power supplies for your demanding environments, backed by a 3-year warranty and prompt delivery.
Buy TracoPower TDL24811 now and experience unmatched reliability with high efficiency and robust safety features for industrial applications.
Frequently Asked Questions
Where can I buy TRACO POWER TDL24811?
You can click on the BUY or RFQ button to purchase TDL24811 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TDL24811?
You can download the TDL24811 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TDL24811?
TRACO POWER
