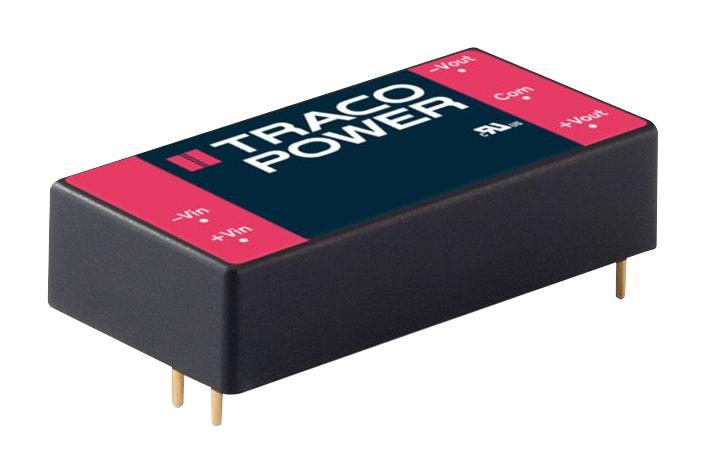

TRACO POWER TRI152413 DC/DC Converter
The TRI 15 series is a compact, high-isolation 15 Watt DC/DC converter designed for demanding industrial, transportation, and instrumentation applications. It features reinforced I/O isolation capable of withstanding test voltages up to 8000 VDC for 1 second and working voltages of 1000 VACrms. With efficiencies up to 90%, it offers wide input ranges (9-36 VDC and 36-75 VDC), precise regulation, and a built-in filter for EMI suppression. The series complies with IEC/EN/UL 62368-1 standards, providing reliable performance from -40°C to +85°C with derating and includes overload, overvoltage, and short circuit protections.
TRACO POWER TRI152413 DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC or 36-75 VDC depending on model
- Output Power: 15 Watts
- Isolation Voltage: 8000 VDC for 1s, 5940 VDC for 60s, and 1000 VAC working voltage
- Efficiency: Up to 90%
- Operating Temperature: -40°C to +85°C with derating
- Protection: Overload, overvoltage, and short circuit
- Ripple and Noise: 100 mVp-p (12 V output), 150 mVp-p (24 V output), 100 mVp-p (15 V output)
- Dimensions: Approximately 2 x 1 inches (50.8 x 25.4 mm)
- Insulation: Reinforced, with high transient immunity of 15 kV/μs
- Certifications: IEC/EN/UL 62368-1, Emissions Class A with internal filter, Class B with external filter
- Qualification: Complies with pollution degree PD 2, Over Voltage Category OVC
- Soldering Profile: Wave soldering at max 260°C for 10 seconds
Buy the Traco Power Series TRI 15 DC/DC Converter: TRI152413
Order the Traco Power TRI 15 series 15 Watt DC/DC converter online today to ensure reliable high-isolation power solutions for industrial, transportation, and instrumentation applications. With robust safety standards, up to 90% efficiency, wide input ranges, and reinforced insulation, this compact converter offers exceptional performance and durability. Designed for seamless integration in demanding environments, it features protections against overload, overvoltage, and short circuits, plus compliance with IEC/EN/UL safety certifications. Enhance your system’s stability and safety by purchasing this high-quality power module now.
Buy Traco Power TRI 15 series 15 Watt DC/DC converter now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy TRACO POWER TRI152413?
You can click on the BUY or RFQ button to purchase TRI152413 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TRI152413?
You can download the TRI152413 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TRI152413?
TRACO POWER
