TRACO POWER TDN54811WI High-Performance DC-DC Converter
The TDN 5-4811WI from TracoPower is a high-performance, 5W single-output DC-DC converter housed in an ultra-compact DIP package measuring 9.1mm x 10.2mm x 13.2mm. It features a fully regulated 5V output with a maximum current of 1A, efficiency of 81%, and a wide input voltage range from 18VDC to 75VDC with no minimum load requirement. This converter offers robust protection with continuous, automatic recovery short circuit protection, and complies with EN 61000-4-2 ESD standards with air and contact discharge levels. It provides excellent isolation with 1600VDC I/O isolation voltage and high resistance. The device is suitable for space-constrained applications in power management and industrial settings, capable of operating from -40°C to 75°C without derating.
TRACO POWER TDN54811WI High-Performance DC-DC Converter Specifications:
- Input Voltage Range: 18VDC to 75VDC
- Output Voltage: 5VDC
- Output Current Max: 1A
- Efficiency: 81%
- Isolation Voltage: 1600VDC I/O
- Operating Temperature: -40°C to +75°C
- Power: 5 Watts
- Package Dimensions: 9.1mm x 10.2mm x 13.2mm
- Protection: Continuous short circuit with automatic recovery
- ESD Immunity: EN 61000-4-2 Level air 8kV/contact 6kV
- Ripple & Noise: Typical 50 mVp-p
- Start-up Time: 10 ms typical
- Thermal Range: -40°C to +75°C without derating
- Enclosure Material: UL 94/0 rated FR4
- Potting Material: Silicone (UL 94/0)
- Pin Material: Tinned Copper
- Soldering Temperature: 260°C / 6 s max
- MTBF: 2,280,000 hours

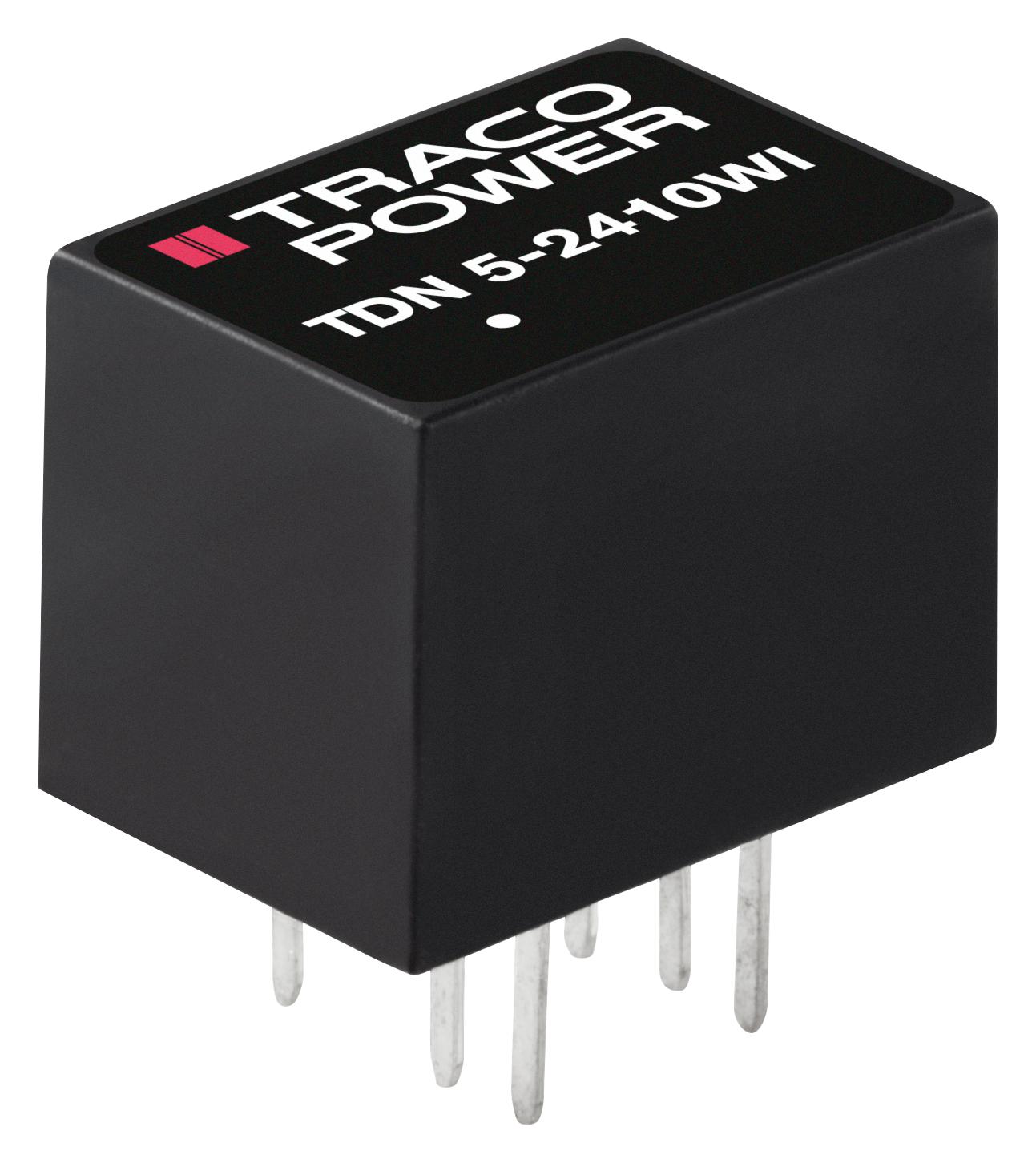

Buy the TracoPower Series TDN: 5 Watt DC-DC Converter: TDN54811WI
Experience reliable power conversion with TracoPower’s TDN54811WI, a 5W ultra-compact DC-DC converter designed for industrial and power management systems. It offers a fully regulated 5V output capable of delivering up to 1A of current, boasting an efficiency of 81%. With a broad input voltage range from 18VDC to 75VDC and electrical isolation of 1600VDC, this device ensures optimal safety and performance in space-limited environments. Its robust short circuit protection, wide operating temperature range of -40°C to 75°C, and compliance with leading safety standards make it a superior choice for demanding industrial applications.
Get TracoPower TDN54811WI today—built for precision and long-lasting durability in space-constrained power management applications.
Frequently Asked Questions
Where can I buy TRACO POWER TDN54811WI?
You can click on the BUY or RFQ button to purchase TDN54811WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TDN54811WI?
You can download the TDN54811WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TDN54811WI?
TRACO POWER
