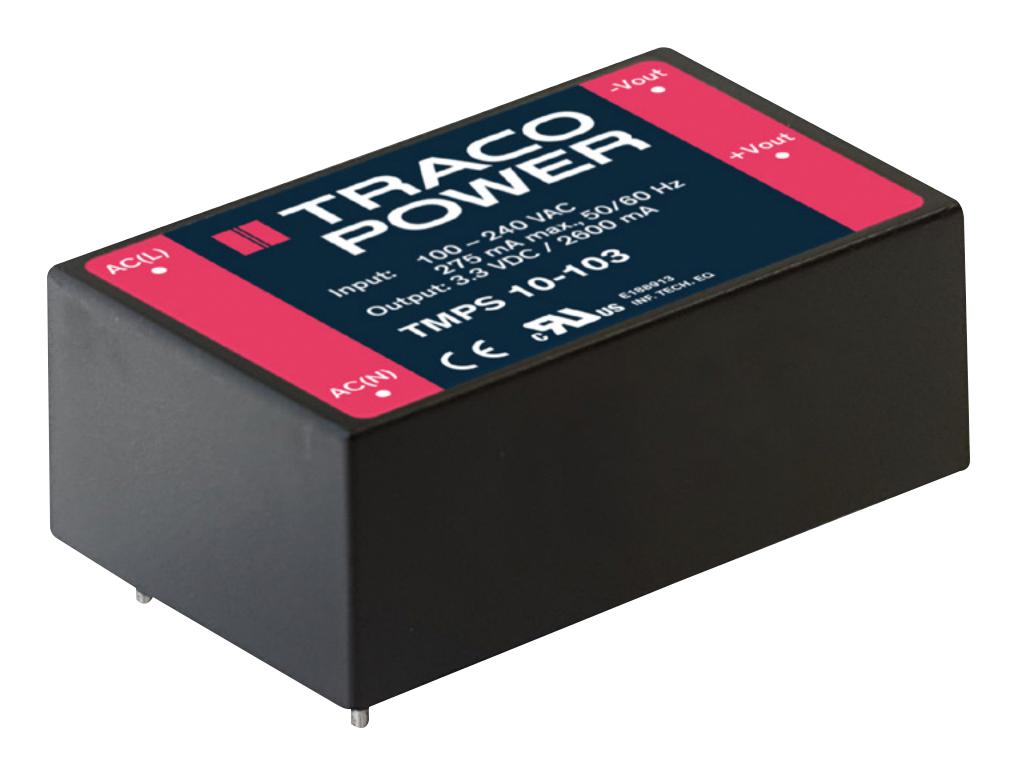

TRACO POWER TMPS10109 Power Supply Module
The TMPS 10 series is a compact 10-watt PCB power supply module designed for industrial and household applications. Certified for safety standards IEC/EN/UL 62368-1 and IEC/EN 60335-1, it features reinforced I/O isolation of 4000 VAC, low no-load power consumption under 0.15W, and operates within a temperature range of -25°C to +70°C. Its small size and high efficiency make it ideal for space-constrained low-power circuits, with peak current capability of 130% for up to 30 seconds, ensuring reliable power delivery for various applications.
TRACO POWER TMPS10109 Power Supply Module Specifications:
- Input Voltage: AC 85–264 VAC, DC 120–370 VDC
- Frequency: 47–63 Hz (designed for 47–440 Hz)
- Output Power: 8.6W – 15W depending on model
- Output Voltage: 3.3 VDC, 5 VDC, 9 VDC, 12 VDC, 15 VDC, 24 VDC, 48 VDC
- Maximum Output Current: 2600 mA for 3.3V, 2000 mA for 5V, 1100 mA for 9V, 830 mA for 12V, 660 mA for 15V, 410 mA for 24V, 210 mA for 48V
- Efficiency: 77% to 86%
- Isolation Voltage: 4000 VAC
- Leakage Current: 0.25 mA max
- Inrush Current: 20A at 115 VAC, 40A at 230 VAC
- No-load Power: ≤0.15 W
- Ripple & Noise: ≤60 mVp-p
- Operating Temperature: -25°C to +70°C
- Power Derating: 2.5%/K above 50°C
- Dimensions: 1.00 x 1.50 inches (25.4 x 38.1 mm)
- Weight: 29 g
- Protection Class: II
- Certifications: IEC/EN/UL 60950-1, IEC/EN/UL 62368-1, IEC/EN 60335-1
- EMC Compliance: EN 55014-1, EN 55032, FCC Part 15 B
- Switching Frequency: 30 – 65 kHz
Buy the Traco Power TMPS10 Series – Reliable Power Modules for Industrial Applications
Purchase the Traco Power TMPS10 series power supply module online today and enjoy dependable, efficient power delivery for your low-power circuits. Certified for industrial and household safety standards, this compact module provides high efficiency with reinforced isolation of 4000 VAC. Its versatile voltage options and peak current capability ensure reliable performance in space-constrained environments. With low no-load power consumption and excellent EMI compliance, it’s perfect for modern electronic systems requiring safe, efficient, and space-saving power solutions. Enhance your projects with trusted quality today.
Order your Traco Power TMPS10 series 10-watt power module today and ensure reliable, space-efficient power for your industrial or household projects.
Frequently Asked Questions
Where can I buy TRACO POWER TMPS10109?
You can click on the BUY or RFQ button to purchase TMPS10109 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMPS10109?
You can download the TMPS10109 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMPS10109?
TRACO POWER
