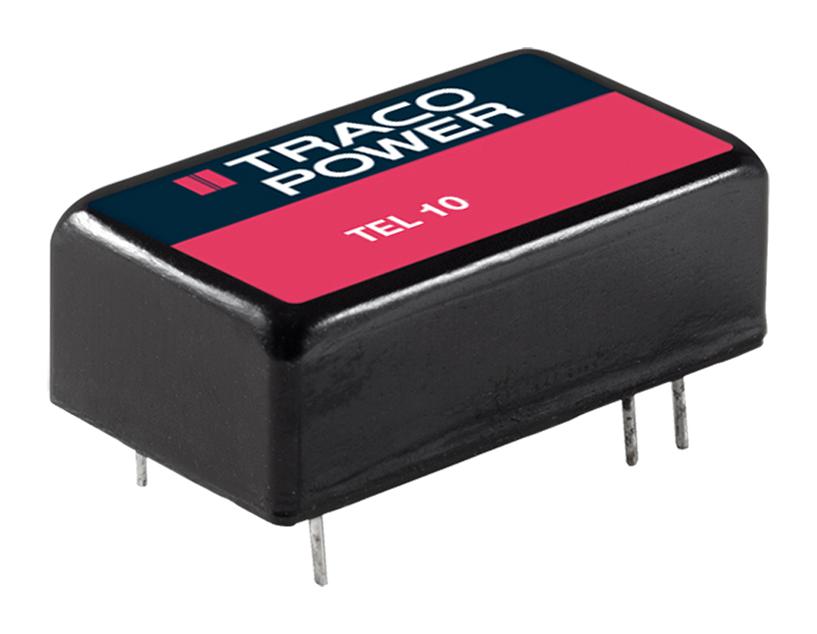

TRACO POWER TEL102413 DC/DC Converter
The TEL 10 series offers compact, high-efficiency 10 Watt DC/DC converters in a DIP-16 metal package, designed for space-critical applications. With a wide 2:1 input voltage range and efficiencies up to 88%, these converters operate at temperatures up to +70°C at full load, making them ideal for industrial, instrumentation, and IT uses. Built-in filters meet conducted emission standards, featuring protections like short circuit and input voltage surges, all while maintaining a robust design with UL and IEC certifications and a 3-year warranty.
TRACO POWER TEL102413 DC/DC Converter Specifications:
- Power output: 10 Watt
- Input Voltage Range: 9-18 VDC, 12 VDC nom, 24 VDC, 48 VDC
- Input Current at full load: 970 mA (12 V), 480 mA (24 V), 240 mA (48 V)
- Surge Voltage: 25 VDC (12 V models), 60 VDC (24 V models), 100 VDC (48 V models)
- Isolation: Input to Output 1800 VDC, Input to Case 707 VAC, Output to Case 707 VAC
- Efficiency: Up to 88%, operating temperature -40°C to +85°C with derating
- Ripple & Noise: 72-80 mVp-p depending on model
- Protection: Continuous short circuit, automatic recovery
- Mechanical: DIP-16 metal case, weight 65g, tinned copper pins
- Certifications: UL 62368-1, IEC 62368-1, EN 55032 class A emission, EN 61000-4 immunity
Buy the Traco Power Series TEL: 10 Watt DC/DC Converter: TEL102413
Purchase the Traco Power TEL102413 10 Watt DC/DC converter online today and benefit from its high efficiency, wide input range, and compact design. Ideal for industrial, instrumentation, and IT applications requiring reliable, protected power conversion. With built-in filters meeting strict emission standards, automatic short circuit protection, and certifications including UL 62368-1, this converter ensures safety and performance. Easy to integrate into tight spaces with a durable DIP-16 metal casing, it guarantees long-term operation with a 3-year warranty. Get yours now for dependable power supply solutions.
Order your Traco Power Series TEL102413 high-efficiency 10 Watt DC/DC converter today and ensure reliable power for your critical industrial and electronics projects.
Frequently Asked Questions
Where can I buy TRACO POWER TEL102413?
You can click on the BUY or RFQ button to purchase TEL102413 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEL102413?
You can download the TEL102413 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEL102413?
TRACO POWER
