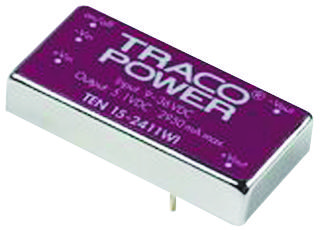

TRACO POWER TEN152411WI DC-DC Converter
The TEN 15-2411WI is a single-output, board-mount isolated DC-DC converter featuring an ultra-wide 4:1 input voltage range. It offers high efficiency up to 86%, 1500VDC isolation, and built-in filtering that complies with EN 55022, Class A, and FCC Level A standards without external components. The converter includes remote on/off functionality, utilizes a full Surface Mount Device (SMD) design with ceramic chip capacitors for enhanced reliability and long lifespan, housed in a six-sided shielded case. Operating temperatures range from -40°C to +85°C, making it suitable for power management, communications, and industrial applications.
TRACO POWER TEN152411WI DC-DC Converter Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC
- Output Voltage Options: 3.3 VDC, 5.1 VDC, 12 VDC, 15 VDC
- Output Current Max: 3A to 1.25A depending on model
- Efficiency: up to 86%
- Isolation Voltage: 1500 VDC
- Operating Temperature: -40°C to +85°C
- Ripple and Noise: 80 mVpk-pk max
- Switching Frequency: 330 kHz typ.
- Case Material: Copper, nickel plated
- Dimensions: 50.8 mm x 40.5 mm x 18 mm
- Soldering Max Temperature: 265°C / 10 sec
- Protection: Short circuit, overload, and overvoltage protections
- Certifications: UL 60950-1, IEC 60950-1, RoHS, Reach
Buy the TRACOPOWER TEN152411WI – Reliable DC-DC Converter for Industrial Applications
Purchase the TRACOPOWER TEN152411WI online today to benefit from reliable, high-efficiency isolated power conversion with a broad input range. This converter is ideal for industrial, communications, and power management applications, offering 1500VDC isolation, low ripple, and robust protection features. Its compact design and high reliability ensure long-term performance in demanding environments. Take advantage of our seamless online ordering process to secure this essential power module quickly and conveniently, ensuring your projects are powered with dependable quality and excellent efficiency.
Order your TRACOPOWER Series TEN152411WI today and give your projects the dependable quality they deserve with efficient power conversion.
Frequently Asked Questions
Where can I buy TRACO POWER TEN152411WI?
You can click on the BUY or RFQ button to purchase TEN152411WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN152411WI?
You can download the TEN152411WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN152411WI?
TRACO POWER
