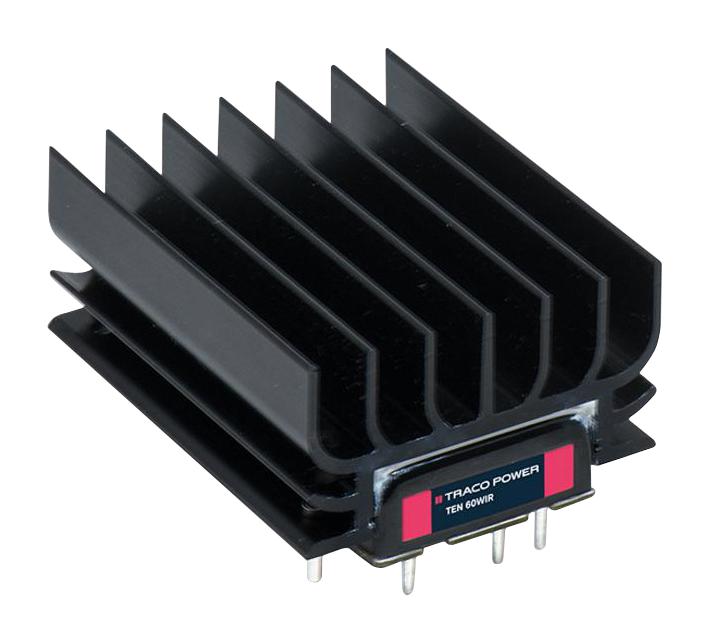

TRACO POWER TEN607212WIR railway DC/DC converter
The TEN 6OWIR series is a rugged 60 Watt railway-approved DC/DC converter in a compact 2x1 inch package, with a wide 4:1 input voltage range from 9-36 VDC to 36-160 VDC. It features high efficiency up to 92%, EN 50155 and EN 61373 railway approvals, a -40°C to +90°C operating temperature range, 3000 VDC isolation, adjustable output, remote on/off, and conformance to fire safety standards EN 45545-2. Ideal for industrial and transportation systems requiring reliable power conversion and electromagnetic resilience.
TRACO POWER TEN607212WIR railway DC/DC converter Specifications:
- Power: 60 Watts
- Input Voltage Range: 9-36 VDC, 18-75 VDC, 36-160 VDC
- Efficiency: up to 92%
- Isolation Voltage: 3000 VDC
- Operating Temperature: -40°C to +90°C
- Input Surge Voltage: 50-200 VDC depending on model
- Input Current at No Load: 15 mA typ. for 24, 48, 1410 VDC models
- Output Voltage Adjustment: ±10% to +20% for some models, ±10% others
- Voltage Set Accuracy: ≤1%
- Ripple & Noise: 100-300 mVp-p depending on output
- Start-up Time: ~30-60 ms
- Short Circuit and Overvoltage Protection: Yes
- Remote On/Off: Yes, controlled by 3-12 VDC or open circuit
- Isolation Resistance: ≥1000 MΩ at 500 VDC
- Temperature Coefficient: +0.02%/K max
- Housing: Copper with non-conductive potting, dimensions 2”x1”
Buy the TRACOPOWER TEN 6OWIR – Reliable Power Converter for Industrial Applications
Purchase the TRACOPOWER TEN 6OWIR series 60 Watt railway-approved DC/DC converter online today. This rugged power supply provides high efficiency up to 92%, wide input voltage, and reliable thermal and electromagnetic resilience. Suitable for demanding industrial and transportation environments, it features adjustable output, remote control, and robust safety standards including EN 45545-2 fire safety certification. Ensure your projects maintain optimal performance and compliance by ordering directly from our trusted online store now.
Order your TRACOPOWER TEN 6OWIR series 60 Watt power supply today and ensure dependable, high-efficiency power conversion for your industrial or railway systems.
Frequently Asked Questions
Where can I buy TRACO POWER TEN607212WIR?
You can click on the BUY or RFQ button to purchase TEN607212WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN607212WIR?
You can download the TEN607212WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN607212WIR?
TRACO POWER
