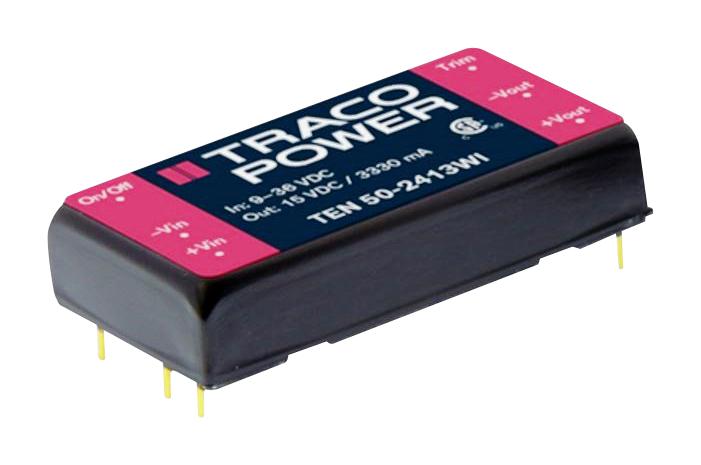

TRACO POWER TEN502412WI DC/DC Converter
The TEN 50WI Series is a highly efficient 50-watt DC/DC converter range designed for industrial, communication, and instrumentation applications. It features a compact 1" x 2" x 0.4" package, wide 4:1 input voltage range, up to 92% efficiency, and operates from -40°C to +80°C. With features like adjustable output voltage, Remote On/Off, and 1500 VDC isolation, these converters are ideal for space-constrained PCB designs, offering high performance, reliability, and standard protections against overheating and short circuits.
TRACO POWER TEN502412WI DC/DC Converter Specifications:
- Power Rating: 50 W
- Input Voltage Range: 18-75 VDC, 24 VDC and 48 VDC models
- Output Voltage: 3.3 VDC, 5.0 VDC, 12 VDC, 15 VDC, 24 VDC
- Output Current Max.: 10,000 mA to 3,330 mA depending on model
- Efficiency: Up to 92%
- Operating Temperature: -40°C to +80°C, derating above +55°C
- Isolation Voltage: 1500 VDC
- Ripple & Noise: 100-150 mV (typical)
- Dimensions: 1" x 2" x 0.4" (25.4 x 50.8 x 10.2 mm)
- Protection: Over-temperature, short circuit, overload
- Soldering Temperature: Max. 260°C for 10 seconds
- Humidity: 95% non-condensing
- MTBF: >230,900 hours
- Certification: UL, CSA, IEC 60950-1, RoHS, Reach
Buy the Buy Traco Power TEN 50WI Series Part Number TEN502412WI Online
Securely purchase the Traco Power TEN 50WI Series DC/DC Converter online today and ensure your electronic projects benefit from 50 watts of high-efficiency, compact power. With adjustable output, wide input voltage range, and essential protections, these converters deliver exceptional performance in space-constrained environments. Ideal for industrial, communication, and instrumentation applications, the TEN 50WI Series guarantees reliable operation, long MTBF, and compliance with global safety standards. Get yours now for robust and efficient power conversion solutions.
Order your Traco Power TEN 50WI Series TEN502412WI today and give your projects the reliable high-efficiency power they deserve for industrial and communication systems.
Frequently Asked Questions
Where can I buy TRACO POWER TEN502412WI?
You can click on the BUY or RFQ button to purchase TEN502412WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN502412WI?
You can download the TEN502412WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN502412WI?
TRACO POWER
