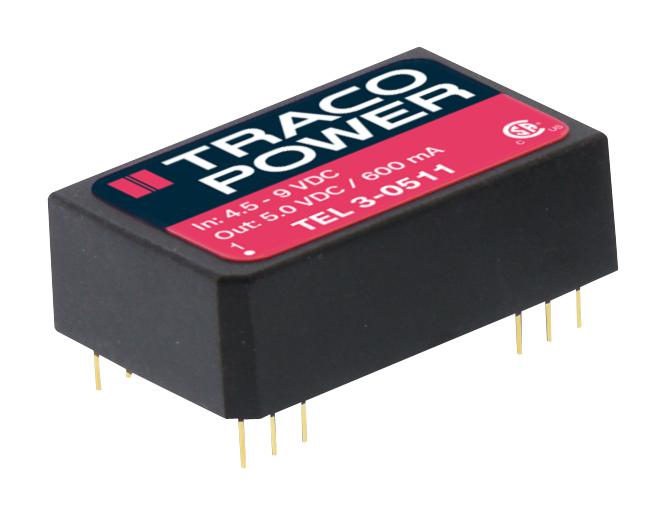

TRACO POWER TEL32412 DC/DC Converter
The TEL 3 series offers 3-watt isolated DC/DC converters in DIL-24 packages with wide input voltage ranges of 2:1 and 3:1, high efficiency up to 81%, and operating temperatures from -40°C to +85°C. Designed for industrial and consumer electronics, these converters feature automatic short-circuit protection, high insulation voltage of 1500 VDC, and low output noise. Suitable for space-constrained applications, they ensure reliable power conversion with a 3-year warranty and compliance with safety standards like UL 60950-1 and IEC/EN 60950-1.
TRACO POWER TEL32412 DC/DC Converter Specifications:
- Input voltage range: 5VDC to 48VDC with models for specific voltages (5V, 12V, 20V, 24V, 48V)
- Output voltage options: 5V, 12V, 15V, 18V, 24V, 36V, 75V, with current ratings up to 600mA
- Efficiency up to 81%
- Operating temperature: -40°C to +85°C
- Isolation voltage: 1500 VDC
- Ripple and noise: <60 mVpk-pk (20 MHz bandwidth)
- Surge voltage (1 sec max): 11V to 100V depending on model
- Soldering temperature: max 265°C for 10 sec.
- Dimensions: approximately 30.5 x 10.2 mm (1.20 x 0.40 inches)
- Weight: approximately 12 g (0.42 oz)
- Switching frequency: 300 kHz typical
- Safety: UL 60950-1, IEC/EN 60950-1, CSA approved
- Compliance: RoHS, Reach
Buy the Traco Power Series TEL3 DC Converter: TEL32412
Purchase the Traco Power TEL32412 online today—engineered for reliable, efficient power conversion in compact industrial, medical, and instrumentation applications. Featuring high efficiency up to 81%, wide input voltage range, easy installation, and proven short-circuit protection, it’s perfect for space-constrained environments requiring stable voltage outputs. With UL, IEC, and CSA safety certifications, enjoy peace of mind with fast delivery, excellent customer support, and a 3-year warranty. Upgrade your power setup with this high-performance DC/DC converter today.
Get Traco Power TEL32412 today—built for precision and long-lasting durability in industrial power applications.
Frequently Asked Questions
Where can I buy TRACO POWER TEL32412?
You can click on the BUY or RFQ button to purchase TEL32412 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEL32412?
You can download the TEL32412 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEL32412?
TRACO POWER
