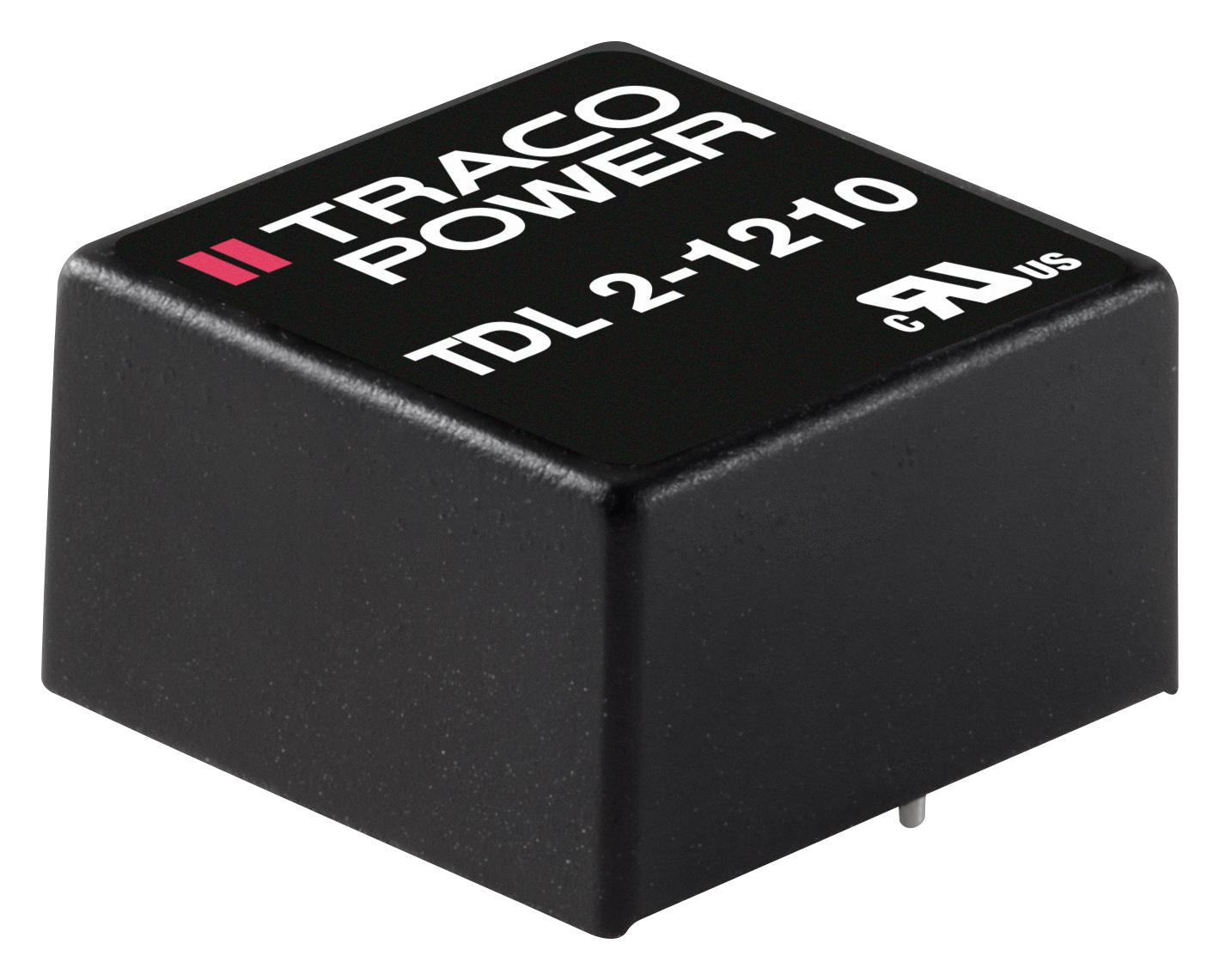

TRACO POWER TDL22413 DC/DC Converter
The TDL 2 series from Tracopower offers compact 2W DC/DC converters in DIP packages, providing reliable power conversion for industrial and electronics applications. These fully regulated, high-efficiency converters feature a wide input voltage range of 5VDC, 12VDC, 24VDC, or 48VDC, with output voltages including 3.3VDC, 5VDC, 12VDC, 15VDC, or bipolar options of ±5VDC, ±12VDC, and ±15VDC. Designed with automatic recovery short circuit protection, they ensure safety and durability at operating temperatures from -40°C to 70°C. Conforming to UL 60950-1 and IEC/EN 60950-1 standards, they are housed in a small, robust DIP package measuring 14mm x 8mm x 14mm, suitable for space-constrained projects.
TRACO POWER TDL22413 DC/DC Converter Specifications:
- Input Voltage: 5VDC, 12VDC, 24VDC, 48VDC
- Output Voltages: 3.3VDC, 5VDC, 12VDC, 15VDC, bipolar ±5VDC, ±12VDC, ±15VDC
- Output Current Max.: 400mA
- Efficiency: up to 87%
- Isolation Voltage: 1500VDC (input/output, 60 sec)
- Operating Temperature Range: -40°C to +70°C
- Ripple and Noise: 70mVp-p (20MHz bandwidth)
- Switching Frequency: ≥100kHz
- Protection: Continuous automatic recovery short circuit, current limiting
- Housing: DIP package, 14mm W x 8mm H x 14mm D
- Certifications: UL 60950-1, IEC/EN 60950-1
- Soldering Temperature: Max. 260°C for 10 sec
- Case Material: FR4, potting material silicone, pin material tinned copper
- Weight: 3.9g
Buy the Buy TracoPower TDL 2 Series Part Number TDL22413 Online
Purchase the TracoPower TDL 2 Series DC/DC converter online today to ensure your electronic projects have a reliable power supply. These 2-watt converters offer a wide input voltage range, high efficiency up to 87%, and robust features like short circuit protection and high isolation voltage of 1500VDC. Their compact DIP package measures only 14mm x 8mm x 14mm, making them ideal for space-sensitive applications. With a 3-year warranty, the TDL 2 series guarantees durability and performance in various operating environments from -40°C to +70°C. Experience seamless power conversion and confidence in your design decisions with these trusted converters.
Order your TracoPower TDL 2 Series TDL22413 today and benefit from reliable, compact power solutions with outstanding efficiency for your industrial projects.
Frequently Asked Questions
Where can I buy TRACO POWER TDL22413?
You can click on the BUY or RFQ button to purchase TDL22413 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TDL22413?
You can download the TDL22413 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TDL22413?
TRACO POWER
