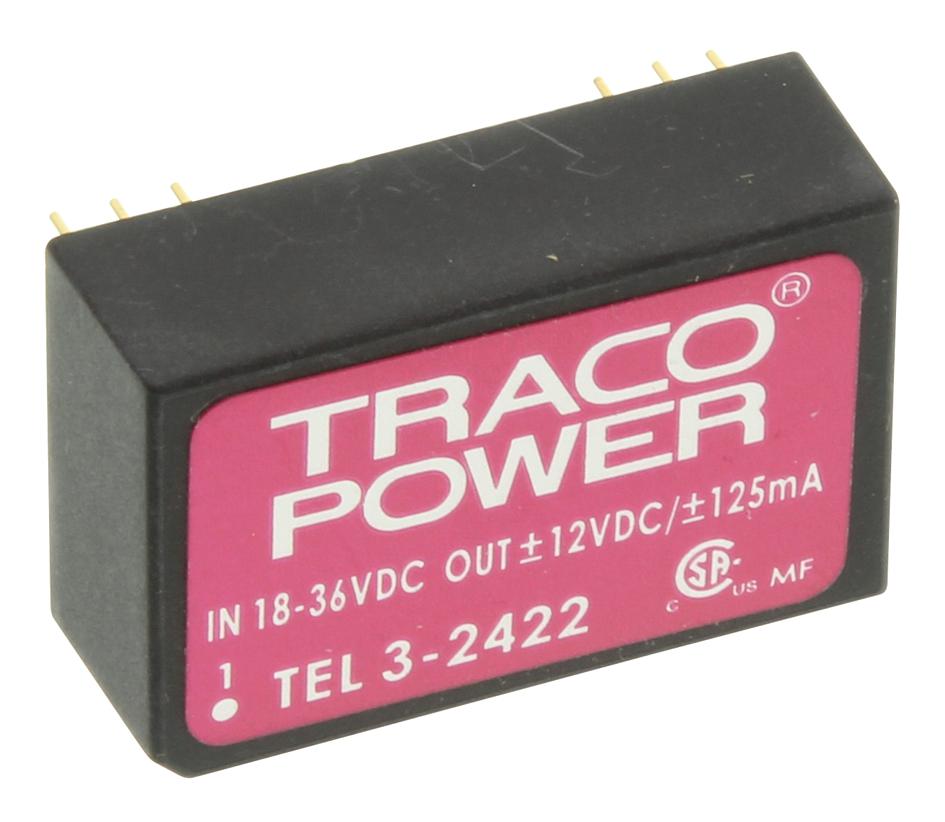

TRACO POWER TEL32422 DC-DC Power Converter
The TEL series 3 Watt DC/DC power converters are compact, highly efficient, isolated modules in DIP-24 packages suited for industrial and consumer electronics. Featuring wide input voltage ranges from 4.5 VDC to 48 VDC and output options tailored for precise voltage regulation, these converters operate at temperatures from -40°C to +85°C. They provide high efficiency up to 81%, low noise, and robust short-circuit protection, making them ideal for cost-sensitive industrial applications requiring reliable power conversion in a small form factor with safety compliance.
TRACO POWER TEL32422 DC-DC Power Converter Specifications:
- Input Voltage Range: 4.5-9.0 VDC, 5 VDC, 12 VDC, 20 VDC, 24 VDC, 36 VDC, 48 VDC
- Output Voltage: 15 VDC, 12 VDC, 5 VDC, etc., depending on model
- Output Current Max: 200-600 mA
- Efficiency: Up to 81%
- Operating Temperature: -40°C to +85°C
- Isolation Voltage: 1500 VDC
- Ripple and Noise: <60 mVpk-pk
- Voltage Regulation: 0.5-2.0%
- Surge Voltage (1 sec max): 11 VDC to 100 VDC depending on model
- Short Circuit Protection: Indefinite (automatic recovery)
- Dimensions: 30.5 mm x 22 mm x 10.2 mm
- Soldering Temp: Max 265°C / 10 sec
- Safety Standards: UL 60950-1, IEC/EN 60950-1, CSA File No. 226037
- Humidity: Up to 95% RH non-condensing
- MTBF: >1 million hours
Buy the Traco Power Series TEL DC-DC Converter: TEL32422
Purchase the high-quality Traco Power Series TEL32422 3 Watt DC-DC converter online today and experience reliable power conversion for industrial and consumer applications. With wide input ranges, high efficiency up to 81%, and robust safety features, this converter ensures optimal performance in demanding environments. Its compact design, excellent thermal range from -40°C to +85°C, and automatic short-circuit protection make it perfect for space-constrained projects requiring dependable power solutions. Get yours now for a trusted and efficient power supply option.
Order your Traco Power Series TEL32422 high-efficiency isolated DC-DC converter today and ensure reliable, cost-effective power in your industrial projects.
Frequently Asked Questions
Where can I buy TRACO POWER TEL32422?
You can click on the BUY or RFQ button to purchase TEL32422 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEL32422?
You can download the TEL32422 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEL32422?
TRACO POWER
