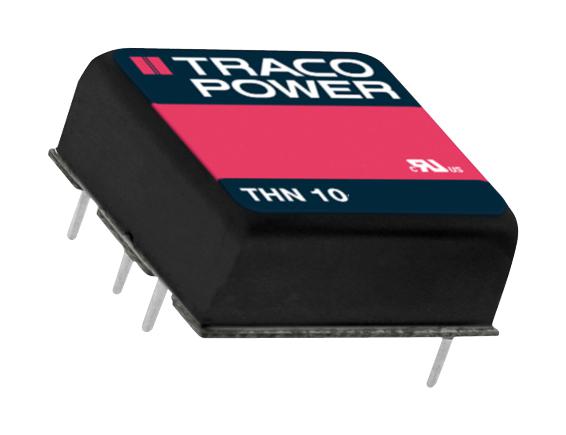

TRACO POWER THN104813WIR Railway Power Converter
The THN 10WIR series offers rugged 10 Watt DC/DC converters ideal for railway and harsh environment applications. Compact 1” x 1” metal package with a wide 4:1 input voltage range (9-36, 18-75, 36-160 VDC). Features include high efficiency up to 90%, 3000 VDC I/O isolation, and protection against overload, overvoltage, and short circuit. Approved for EN 50155, EN 61373, and EN 45545-2 standards, with remote On/Off, trim functions, and internal EMI filtering. Suitable for transportation, industrial, and automation systems requiring reliable power conversion.
TRACO POWER THN104813WIR Railway Power Converter Specifications:
- Input Voltage Range: 9-36 VDC, 18-75 VDC, 36-160 VDC
- Output Power: 10 Watts
- Efficiency: Up to 90%
- Isolation Voltage: 3000 VDC Input to Output
- Operating Temperature: -40°C to +80°C without derating
- Protection: Overload, Overvoltage, Short Circuit
- Remote On/Off and Trim Function
- Dimensions: 25.4 mm x 25.4 mm x 12.7 mm (1" x 1" x 0.5")
- Safety and Standards Compliance: EN 50155, EN 61373, EN 45545-2, UL 62368-1, IEC 62368-1
- Vibration & Shock Resistance: MIL-STD-810F, EN 61373
- Pin Material: Copper with Nickel and Tin Plating
- Housing Material: Copper with epoxy encapsulation
- Input Surge Voltage: 60V (24V models), 100V (48V), 185V (140V)
- Start-up Time: 30 ms typical
- Ripple & Noise: 75 mVp-p (varies by model)
Buy the Buy Traco Power DC/DC Converter Part Number THN104813WIR Online
Purchase the Traco Power THN 10WIR power converter online today. Engineered for high reliability in demanding environments like railway systems and industrial automation. With up to 90% efficiency, 3000 VDC isolation, and comprehensive safety approvals including EN 50155, EN 61373, and EN 45545-2, it offers optimal performance and safety. Compact 1” x 1” design with remote on/off, trim functions, and EMI filtering simplifies integration. Ensure long-lasting, stable power supply for critical applications with this rugged, certified converter—order now for fast delivery and peace of mind.
Get Traco Power THN 10WIR converter today—designed for railway, transportation, and harsh environments with reliable power conversion.
Frequently Asked Questions
Where can I buy TRACO POWER THN104813WIR?
You can click on the BUY or RFQ button to purchase THN104813WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THN104813WIR?
You can download the THN104813WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THN104813WIR?
TRACO POWER
