TRACO POWER TEN102422 DC/DC Converter
The TEN 10 series of high-performance 10W DC/DC converters feature a compact 2x1 inch design, high efficiency, and operate from -40°C to +85°C. They include an EMI filter meeting EN 55022, Class A standards, and offer protections like short-circuit, over-voltage, and under-voltage shutdown. Suitable for battery-powered systems, instrumentation, and industrial electronics, these converters provide industry-standard pinouts, high reliability with MTBF over 1 million hours, and a 3-year warranty. They meet safety standards UL 60950-1 and IEC/EN 60950-1, ensuring compliance for various applications.
TRACO POWER TEN102422 DC/DC Converter Specifications:
- Input Voltage Range: 3.3 VDC to 48 VDC with models supporting 9-18 VDC, 24 VDC, 36-75 VDC, and 48 VDC nominal
- Output Power: 10 Watts
- Efficiency: 72% to 83% depending on model
- Operating Temperature: -40°C to +85°C
- Isolation Voltage: 1500 VDC
- MTBF: >1 Million hours
- Input Current at No Load: 10-30 mA; at Full Load: 215-915 mA depending on model
- Ripple & Noise: 50-75 mV peak-to-peak
- Dimensions: 50.8 mm x 25.4 mm x 11 mm (2.0 x 1.0 x 0.43 inches)
- Case Material: Steel with insulated epoxy baseplate
- Protection Features: Short circuit, over voltage, under-voltage shutdown
- Soldering Temperature: Max 265°C for 10 seconds
- Compliance: UL 60950-1, IEC/EN 60950-1, RoHS, Reach
- Switching Frequency: 300-500 kHz
- Humidity: Up to 95% non-condensing
- Weight: Approx. 30 grams
- Pin Configuration: +Vin, GND, +Vout, Common, Vout (standard pinout)

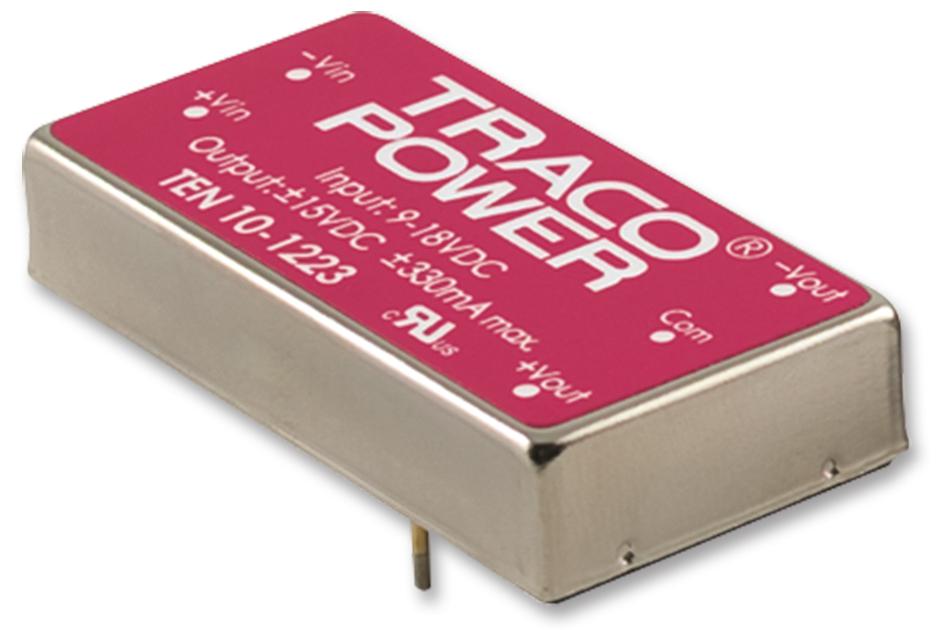

Buy the Traco Power Series TEN 10 DC/DC Converter: TEN102422
Experience reliable power conversion with the Traco Power TEN102422, a 10W DC/DC converter designed for industrial, instrumentation, and communication systems. It features a compact form factor, high efficiency up to 83%, wide operating temperature from -40°C to +85°C, industry-standard pinouts, and comprehensive protections including short-circuit, over-voltage, and under-voltage shutdown. Its robust steel casing with insulated baseplate ensures durability and safety, making it ideal for demanding applications where reliable, isolated, and regulated voltages are critical. Purchase online today for trusted performance and long-term reliability.
Get Traco Power TEN102422 today—built for precise regulation and long-lasting durability in demanding power environments.
Frequently Asked Questions
Where can I buy TRACO POWER TEN102422?
You can click on the BUY or RFQ button to purchase TEN102422 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN102422?
You can download the TEN102422 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN102422?
TRACO POWER
