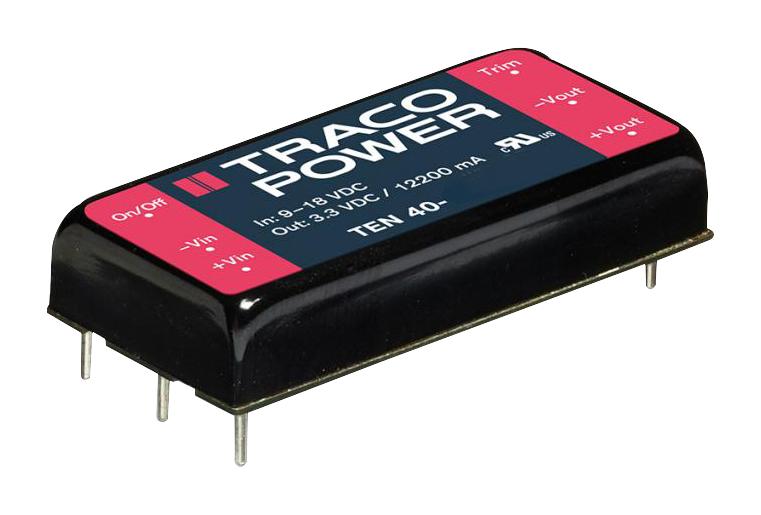

TRACO POWER TEN402422E DC/DC Converter
The TEN 40E series is a 40W isolated DC/DC converter designed to deliver high efficiency and reliable performance. Encased in a compact 2" x 1" metal package, it features a 2:1 input voltage range and operates effectively within a temperature range of -40°C to +70°C (depending on the model), with no power derating. The converter boasts an efficiency of up to 93%, resulting in minimal heat generation and enabling natural convection cooling. It supports 1600VDC input/output isolation, includes a remote on/off function, and provides protection against short circuits, overvoltage, and over-temperature conditions. Certified according to IEC/EN/UL 62368-1 standards, this series is suitable for various industrial applications. The product is constructed with a copper housing and a non-conductive UL94 V-0 rated FR4 base, with a switching frequency typically around 250 kHz and a 3-year warranty.
TRACO POWER TEN402422E DC/DC Converter Specifications:
- Power: 40 Watt
- Input Voltage Range: 9-75 VDC (wide 2:1 range)
- Output Voltage Options: 3.3 V, 5 V, 12 V, 15 V, 24 V, -12 V, -15 V, -24 V
- Input to Output Isolation: 1600 VDC
- Efficiency: Up to 93%
- Operating Temperature: -40°C to +70°C (model dependent)
- Protection: Short circuit, overvoltage, overtemperature
- Case Material: Copper housing with UL94 V-0 rated FR4 base
- Switching Frequency: ~250 kHz
- Dimensions: 2" x 1" x 0.4" (approximate)
- Certification: IEC 62368-1, UL 62368-1
- Warranty: 3 years
Buy the Buy Traco Power DC/DC Converter Part Number TEN402422E Online
Purchase the Traco Power TEN402422E online today and enjoy a high-quality 40-watt isolated DC/DC converter that offers up to 93% efficiency. Its compact 2" x 1" metal case ensures easy integration into industrial systems. With a wide input voltage range of 9-75 VDC, 1600VDC input/output isolation, remote on/off, and protections against short circuits, overvoltage, and over-temperature, this device guarantees reliable performance. Certified under IEC/EN/UL 62368-1 standards, it is ideal for industrial, communication, and automation applications. Order now for fast delivery and dependable power solutions.
Buy Traco Power TEN402422E now and benefit from high efficiency, robust protection, and reliable industrial-grade performance.
Frequently Asked Questions
Where can I buy TRACO POWER TEN402422E?
You can click on the BUY or RFQ button to purchase TEN402422E from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN402422E?
You can download the TEN402422E datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN402422E?
TRACO POWER
