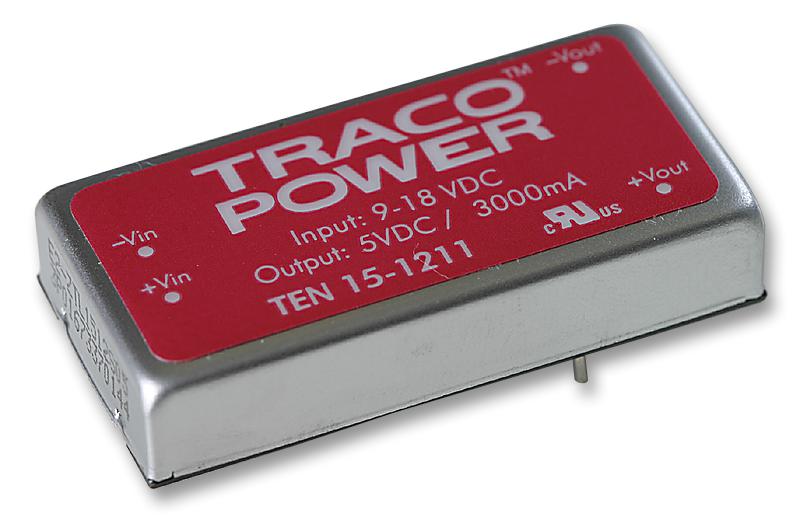

TRACO POWER TEN151211 DC/DC Converter
The Power Series TEN 15 is a high-quality 15-watt DC/DC converter offering excellent efficiency up to 88%, a wide input range, and operation from -40°C to +85°C. It features built-in EN 55022, FCC Level A filters, isolation of 1500 VDC, short circuit robustness, overvoltage protection, and industrial-grade pinning. The compact design measures 50.8 mm x 25.4 mm x 10.2 mm with a shielded metal housing and isolated base plate, making it ideal for mobile battery-powered, industrial, and communication systems requiring galvanic isolation and precise voltage regulation.
TRACO POWER TEN151211 DC/DC Converter Specifications:
- Input Voltage Range: 3.3 VDC, 5 VDC, 9-18 VDC, 12 VDC, 15 VDC, 18-36 VDC, 24 VDC, 36-75 VDC, 48 VDC
- Output Voltage: 3.3 V, 5 V, 9 V, 12 V, 15 V
- Output Current: Up to 4000 mA
- Efficiency: Up to 88%
- Operating Temperature: -40°C to +85°C
- Isolation Voltage: 1500 VDC
- Dimensions: 50.8 mm x 25.4 mm x 10.2 mm
- Input Filter: EN 55022, Class A, FCC Level A
- Short Circuit Protection: Yes, automatic restart
- Overvoltage / Surge Protection: Yes
- Ripple (20 MHz bandwidth): 50-75 mVpk-pk depending on model
- Vibration & Shock Resistance: MIL-STD-810F compatible
- Certification: UL, cUL, IEC 60950-1
Buy the Trac Series TEN Power DC/DC Converter: TEN151211
Order the Trac Power TEN151211 DC/DC converter online today to ensure a compact, reliable, high-efficiency power solution for industrial, communication, and battery-powered applications. Featuring a robust metal housing, wide 3.3 V to 15 V output options, excellent efficiency up to 88%, and built-in filters compliant with EN 55022 Class A and FCC Level A standards, this converter ensures galvanic isolation of 1500 VDC. Ideal for demanding environments, it provides overvoltage, short circuit, and surge protection, all within a compact form factor measuring 50.8 mm x 25.4 mm x 10.2 mm, offering durability and consistent performance.
Get Trac Power TEN151211 today—built for high efficiency, rugged industrial use, and reliable galvanic isolation.
Frequently Asked Questions
Where can I buy TRACO POWER TEN151211?
You can click on the BUY or RFQ button to purchase TEN151211 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN151211?
You can download the TEN151211 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN151211?
TRACO POWER
