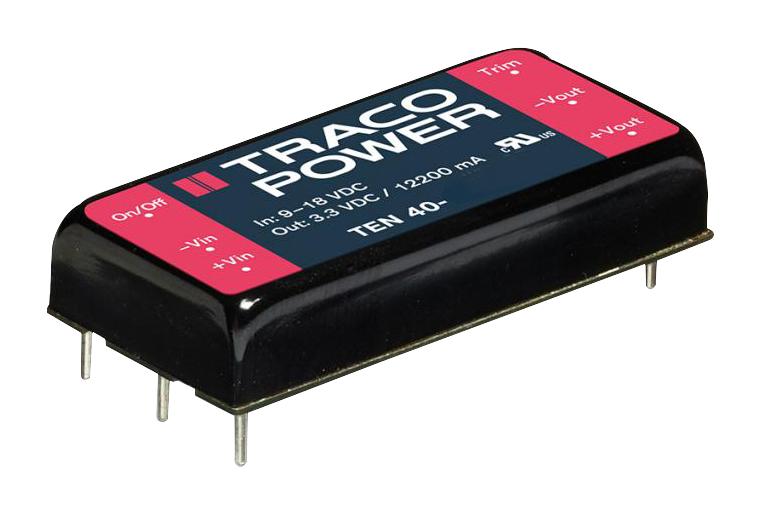

TRACO POWER TEN401210E Industrial Power Converter
The TEN 40E series is a compact 40-watt DC/DC converter designed for industrial applications, featuring a 2" x 1" metal package with six-sided shielding for optimal protection. It offers wide input voltage ranges from 9-18, 18-36, and 36-75 VDC, with efficiencies reaching up to 93%, enabling operation from -40°C to +85°C with natural convection cooling. Certified according to IEC/EN/UL 62368-1 standards, this series includes remote On/Off and Trim functions, along with short circuit, overvoltage, and overtemperature protection for reliable performance in demanding environments.
TRACO POWER TEN401210E Industrial Power Converter Specifications:
- Input Voltage Range: 9-18V, 18-36V, 36-75VDC
- Output Power: 40 Watts
- Efficiency: up to 93%
- Operating Temperature Range: -40°C to +85°C
- Isolation Voltage: 1600 VDC I/O
- Case Material: Copper, non-conductive FR4 potting
- Dimensions: 2" x 1" x 0.4" (50.8 x 25.4 x 10.2 mm)
- Remote On/Off voltage: 3.0 to 12 VDC on/off control
- Protection: Short circuit, overvoltage, overtemperature
- Certification: IEC 62368-1, UL 62368-1, EN 62368-1
- Vibration Resistance: MIL-STD-810F
- Mechanical Weight: 34g
Buy the Buy Traco Power DC/DC Converter Part Number TEN401210E Online
Order the Traco Power TEN 40E series 40-watt industrial DC/DC converter online today. Featuring wide input voltage ranges, efficiencies up to 93%, and comprehensive protection features, this compact converter is ideal for demanding industrial applications. Its robust design includes remote On/Off, overvoltage, overtemperature, and short circuit protection, ensuring reliable operation across a temperature range of -40°C to +85°C. Certified according to IEC, UL, and EN standards, it guarantees performance and safety in harsh environments, making it the perfect choice for engineers seeking durable power solutions.
Buy Traco Power TEN 40E series 40-watt DC/DC converter now and experience unmatched reliability and high efficiency for demanding industrial environments.
Frequently Asked Questions
Where can I buy TRACO POWER TEN401210E?
You can click on the BUY or RFQ button to purchase TEN401210E from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN401210E?
You can download the TEN401210E datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN401210E?
TRACO POWER
