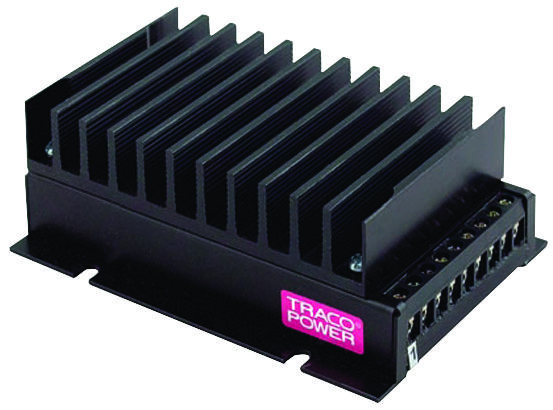

TRACO POWER TEP1502412WI industrial DC/DC converter
The TEP 150-2412WI is a chassis-mount DC/DC converter offering a single output with a shielded metal case and screw terminals. It features high electromagnetic compatibility (EMC) immunity against surge, burst, radiated, and conducted disturbances, making it suitable for stringent environments. Designed for applications such as battery charging, the converter provides a constant voltage to current transition at full load and includes protection against over-temperature, overload, short circuits, reverse polarity, overvoltage, and input under-voltage lockout, ensuring durability. It supports a 24V DC nominal input with an ultra-wide 4:1 input voltage range, high efficiency of 86%, and 2250V DC input/output isolation. Additional features include optional input filtering to meet EN55022 Class B standards, an IP50 protection rating, a temperature coefficient of ±0.02%/K, and a 15A input fuse. Operating temperature range is from -40°C to +75°C. Suitable for industrial and power management applications.
TRACO POWER TEP1502412WI industrial DC/DC converter Specifications:
- Input Voltage: 24 VDC ±20%, ultra-wide 4:1 range 9-36V, 18-75V, 43-160V
- Efficiency: up to 86%
- Input current (no load): 80-130 mA depending on model
- Input surge voltage: 50V to 185V (dependent on model)
- Output Voltage: 12 VDC with ±1% accuracy, adjustability +20%
- Output Current: 12.54 A to 54 A depending on model
- Isolation Voltage: 2250 VDC input to output
- Operating Temperature: -40°C to +75°C
- Case Material: Metal, potting silicone (UL 94V-0 rated)
- Protection: Over-temperature, overload, short circuit, reverse input, overvoltage, input under-voltage lockout
- Safety Standards: UL 60950-1, IEC/EN 60950-1, EN 50155 railway standard
- Dimensions: 52.5 x 83 mm height, weight approximately 300 g
- Mounting: Easy chassis and wall mounting
- Ingress Protection: IP50
- Switching Frequency: 203 - 330 kHz
- Certifications: UL, cUL, IEC 60950-1, EN 50155
Buy the Buy TracoPower DC/DC Converter Part Number TEP1502412WI Online
Secure your power management needs by ordering the TracoPower TEP1502412WI online today. This high-performance, metal-cased DC/DC converter with IP50 protection ensures durable operation in harsh environments. With high efficiency up to 86%, extensive input voltage range, and overload protection, it is ideal for industrial, railway, and battery charging applications. Easy to install, with a remote On/Off feature and 2250V DC isolation, it offers dependable power conversion for demanding projects. Purchase now for reliable energy solutions.
Order your TracoPower Series TEP1502412WI today and ensure your industrial projects benefit from reliable and efficient power conversion.
Frequently Asked Questions
Where can I buy TRACO POWER TEP1502412WI?
You can click on the BUY or RFQ button to purchase TEP1502412WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEP1502412WI?
You can download the TEP1502412WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEP1502412WI?
TRACO POWER
