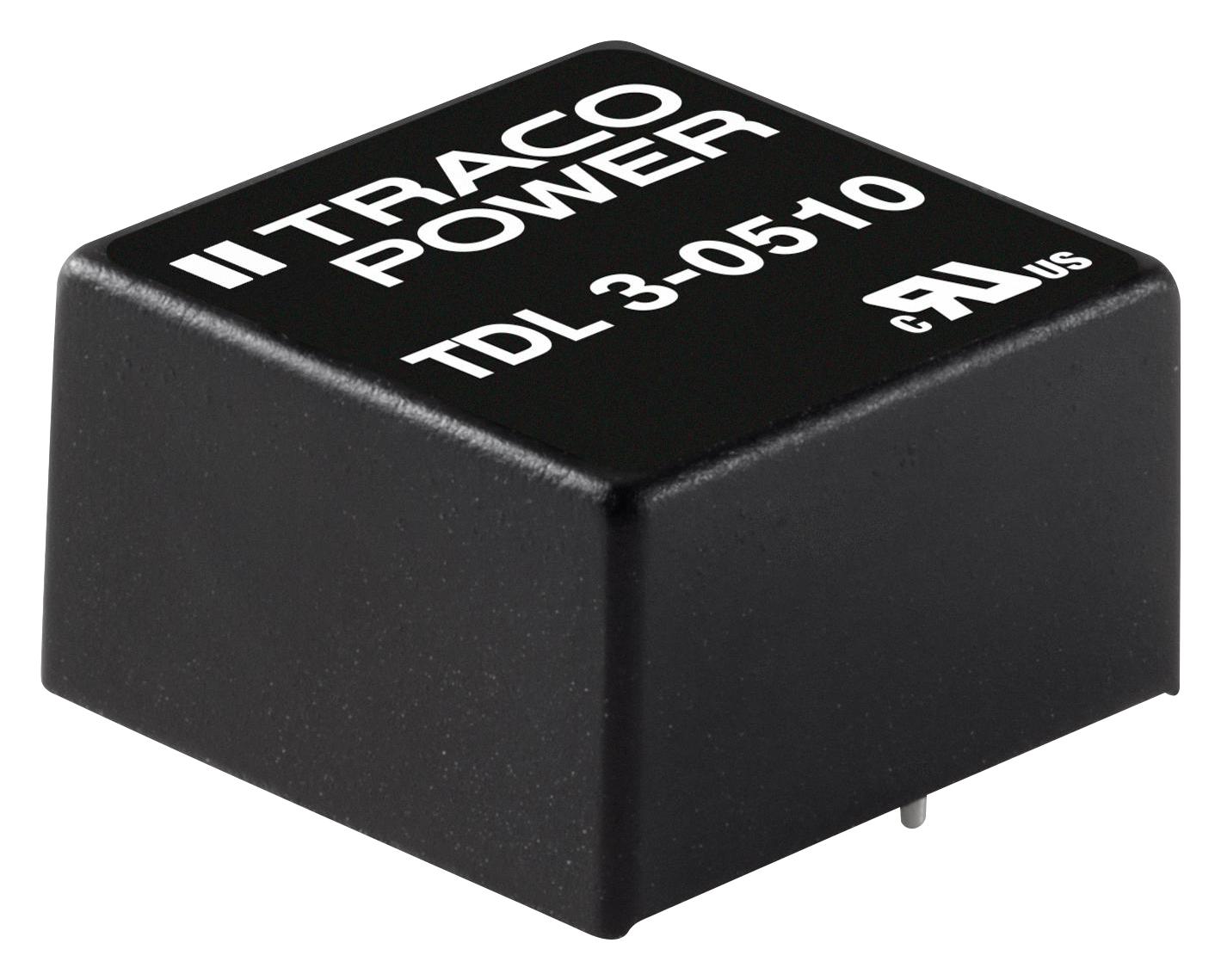

TRACO POWER TDL31222 DC/DC Converter
The TDL 3 series from TracoPower consists of 3W single and dual output DC/DC converters. These compact modules feature a wide 2:1 input voltage range and are housed in a small DIP package measuring 14mm W x 8mm H x 14mm D. They provide continuous, automatic recovery short circuit and overload protection. Options include input voltages of 5VDC, 12VDC, 24VDC, or 48VDC, with adjustable or fixed output voltages such as 3.3VDC, 5VDC, 12VDC, 15VDC, and bipolar variants of ±5VDC, ±12VDC, and ±15VDC. Maximum output currents range from 100mA to 600mA, achieving up to 87% efficiency at a switching frequency of at least 100kHz. The isolation features include 1500VDC withstand voltage over 60 seconds, a typical isolation capacitance of 100pF, and an isolation resistance greater than 1 GΩ. Ripple and noise are approximately 70mVp-p within a 20MHz bandwidth. These converters meet UL 60950-1 and IEC/EN 60950-1 safety standards. They operate reliably in temperatures from -40°C to 70°C and come with a 3-year warranty.
TRACO POWER TDL31222 DC/DC Converter Specifications:
- Power: 3W
- Housing: DIP package, 14mm x 8mm x 14mm
- Input voltage range: 5VDC, 12VDC, 24VDC, 48VDC, 2:1 ratio
- Output voltages: 3.3VDC, 5VDC, 12VDC, 15VDC, ±5VDC, ±12VDC, ±15VDC
- Max output current: 100mA to 600mA
- Efficiency: up to 87%
- Switching frequency: ≥100kHz
- Isolation voltage: 1500VDC over 60 seconds
- Isolation capacitance: 100pF typical
- Isolation resistance: >1 GΩ
- Ripple and noise: approximately 70mVp-p (20MHz bandwidth)
- Operating temperature: -40°C to +70°C
- Short circuit protection: automatic recovery
- Overload protection: at 170% of output load
- Safety standards: UL 60950-1, IEC/EN 60950-1
Buy the TracoPower TDL 3 Series – Reliable Industrial DC/DC Converters for Power Applications
Enhance your industrial power solutions with the TracoPower TDL 31222 DC/DC converter. This compact, 3W module offers a wide input voltage range, excellent efficiency up to 87%, and robust features like short circuit and overload protection. Designed for reliability, it meets international safety standards, operates at temperatures from -40°C to 70°C, and provides galvanic isolation of 1500VDC. Perfect for space-constrained applications requiring dependable power conversion, order online today for fast delivery and seamless integration into your electrical systems.
Buy TracoPower TDL 31222 now and experience unmatched reliability and efficient power conversion in industrial environments.
