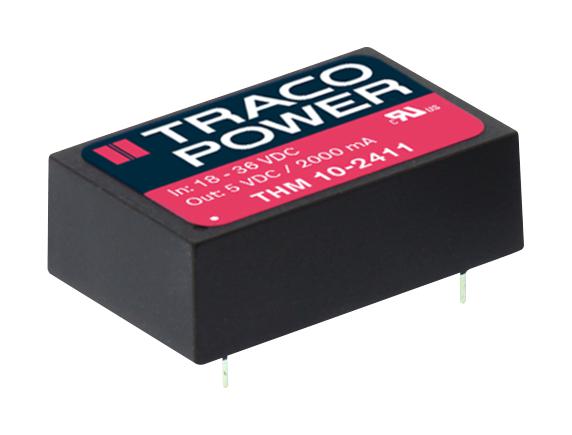

TRACO POWER THM102410 Medical DC/DC Converter
The THM 10WI Series comprises medical-grade 10 Watt DC/DC converters featuring ultra-wide 4:1 input voltage range, reinforced 5000 VACrms isolation, and low leakage current below 2 µA. Encased in a compact DIP-24 plastic package, they operate reliably from -40°C to +90°C and are certified per IEC/EN/ES 60601-1 for 2 x MOPP safety standards. Designed for demanding applications such as medical equipment, transportation, and control systems, these high-efficiency converters provide excellent electromagnetic immunity and come with a 5-year warranty, ensuring long-term performance.
TRACO POWER THM102410 Medical DC/DC Converter Specifications:
- Input voltage range: 3.3 VDC to 48 VDC
- Output power: 10 Watts
- Output voltage options: 5.0 VDC, 12 VDC, 15 VDC, 24 VDC, 36 VDC, 48 VDC
- Output current range: 416 mA to 2500 mA depending on the model
- Efficiency: Up to 89.0%
- Isolation Voltage: 5000 VACrms
- Isolation Class: 2 x MOPP per IEC 60601-1
- Operating temperature: -40°C to +90°C with derating above 75°C
- Dimension: DIP-24 plastic package
- Leakage Current: < 2 µA
- Humidity: 5% to 95% rel. humidity, non-condensing
- Start-up voltage: 4 VDC to 16 VDC depending on model
- Dimensions: 31.8 mm × 23.22 mm × 14 mm
- Certification: IEC/EN/ES 60601-1, IEC 60601-1-2, UL Recognized
- Compliance: RoHS 2011/65/EU
- Warranty: 5 years
Buy the Traco Power THM102410 – Reliable Medical DC/DC Converter for Industrial Applications
Order the Traco Power THM102410 online today and ensure a reliable power supply for your medical, transportation, or industrial equipment. This 10 Watt DC/DC converter offers ultra-wide input voltage, reinforced 5000 VACrms isolation, low leakage current, and excellent efficiency up to 89%. Its compact DIP-24 plastic case allows easy integration into tight spaces, while the certified safety standards guarantee safety and compliance. With a 5-year warranty, purchase now to benefit from long-term performance, high electromagnetic immunity, and dependable operation in harsh environments.
Buy Traco Power THM102410 now and experience unmatched reliability and high efficiency for demanding medical and industrial applications.
Frequently Asked Questions
Where can I buy TRACO POWER THM102410?
You can click on the BUY or RFQ button to purchase THM102410 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THM102410?
You can download the THM102410 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THM102410?
TRACO POWER
