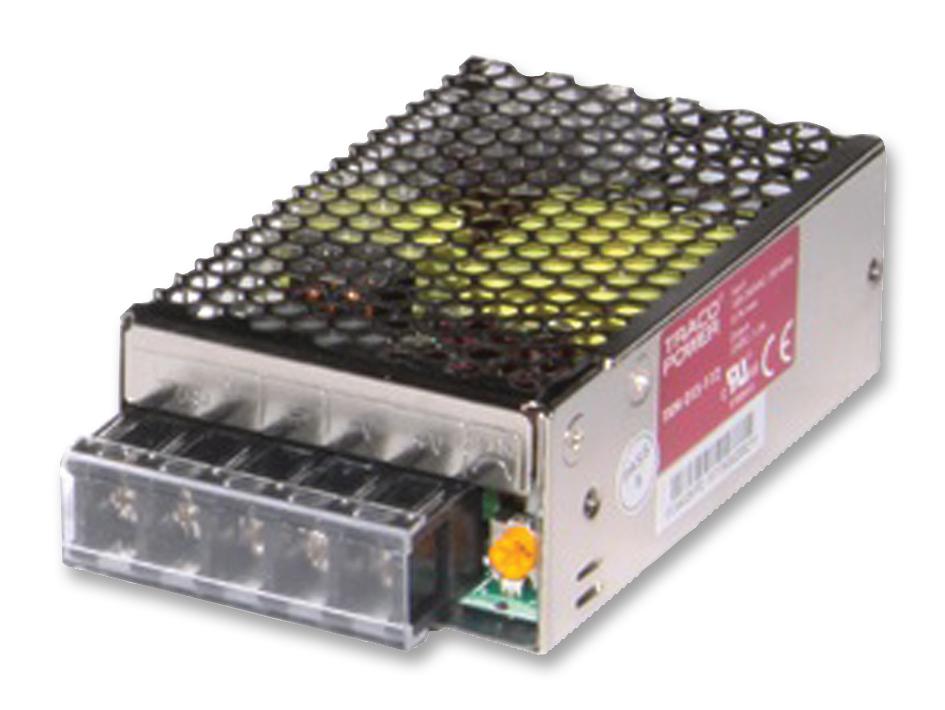

TRACO POWER TXM015103 Power Supply
The TXM 015 series offers compact 15 Watt enclosed AC/DC power supplies designed for cost-sensitive applications. With a slim metal casing, screw terminal connections, and a wide universal input range of 88-264 VAC, these power supplies feature high efficiency, low no-load power consumption under 0.5W, and operate at temperatures up to 70°C. They provide adjustable output voltages from 3.3 VDC to 24 VDC, with robust surge withstand, continuous short circuit protection, and comply with international safety and EMC standards, ensuring reliable performance in industrial environments.
TRACO POWER TXM015103 Power Supply Specifications:
- Output Power: 15 Watt
- Output Voltage: 3.3 VDC, 5 VDC, 12 VDC, 15 VDC, 24 VDC (adjustable 5-10%)
- Output Current: Up to 4.0A
- Input Voltage Range: 88-264 VAC, 124-370 VDC
- Surge Voltage: 300 VAC for 5 sec
- Efficiency: Up to 85%
- Operating Temperature: -25°C to +70°C
- Hold-up Time: 10 ms at 115 VAC, 20 ms at 230 VAC
- Dimensions: Compact metal case, weight approximately 165 g
- Isolation Voltage: Input to output 3000 VAC, input to case 1500 VAC
- Protection: Continuous short circuit, over voltage (105-150% Vout), over temperature
Buy the Traco Power TXM015103 – Reliable Power Supplies for Industrial Applications
Purchase the Traco Power TXM015103 series 15 Watt power supply online today and benefit from reliable, high-efficiency power for your industrial projects. Designed for cost-critical applications, this compact metal case unit features adjustable output voltage, universal input, and high surge withstand capability. With low no-load power consumption under 0.5W and comprehensive safety standards compliance, it guarantees stable operation up to 70°C. Easy to install with screw terminal connections, it is ideal for automation, manufacturing, and control systems needing dependable power sources.
Order your Traco Power TXM015103 series 15 Watt power supply today and ensure your industrial equipment runs with dependable and efficient power.
