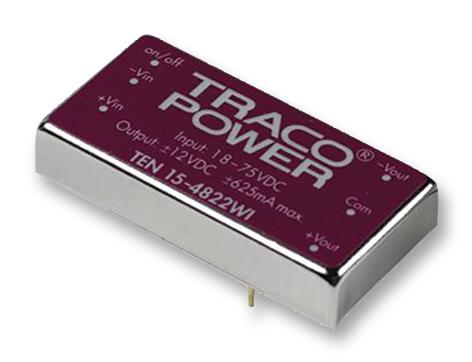

TRACO POWER TEN152422WI DC/DC Converter
The TEN 15WI series of 15-watt DC/DC converters by TracoPower is designed for reliable use in communications, industrial, and battery-powered systems. These converters feature an ultra-wide 4:1 input range, high efficiency up to 86%, and an extended operating temperature range from -40°C to +85°C. The full SMD design utilizes ceramic chip capacitors for high reliability and long life. With built-in filtering that meets EN 55022, FCC Level A standards, remote On/Off, and a six-sided shielded case, these converters ensure stable performance in harsh environments, backed by a 3-year warranty and RoHS compliance.
TRACO POWER TEN152422WI DC/DC Converter Specifications:
- Input voltage range: 9-36 VDC or 18-75 VDC depending on model
- Output voltage options: 3.3 V, 5.1 V, 12 V, 15 V, etc.
- Output current: up to 1250 mA depending on model
- Efficiency: up to 86%
- Operating temperature: -40°C to +85°C
- Isolation voltage: 1500 VDC
- Ripple and noise: 80 mVpk-pk max
- Switching frequency: 330 kHz typ.
- Dimensions: As per datasheet, compact full SMD design
- Case material: Copper, nickel plated, with insulated baseplate
- Weight: Approximately 32 g
- Certifications: UL/UL 60950-1, RoHS
Buy the TracoPower TEN 15WI – Reliable 15 Watt DC/DC Converter for Industrial Applications
Discover the high-efficiency TEN 15WI 15-watt DC/DC converter from TracoPower, specially designed for rugged industrial and communication applications. Features include an ultra-wide input range, an operating temperature from -40°C to +85°C, and built-in filters compliant with EN 55022, FCC Level A standards, ensuring minimal electromagnetic interference. The compact, full SMD design guarantees high reliability and easy installation in confined spaces. With RoHS compliance, a 3-year warranty, and optional heatsink, this converter offers a dependable power solution for demanding environments. Buy online now to ensure seamless integration in your systems.
Get TracoPower TEN 15WI today—built for precision and long-lasting durability in industrial and communication systems.
Frequently Asked Questions
Where can I buy TRACO POWER TEN152422WI?
You can click on the BUY or RFQ button to purchase TEN152422WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN152422WI?
You can download the TEN152422WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN152422WI?
TRACO POWER
