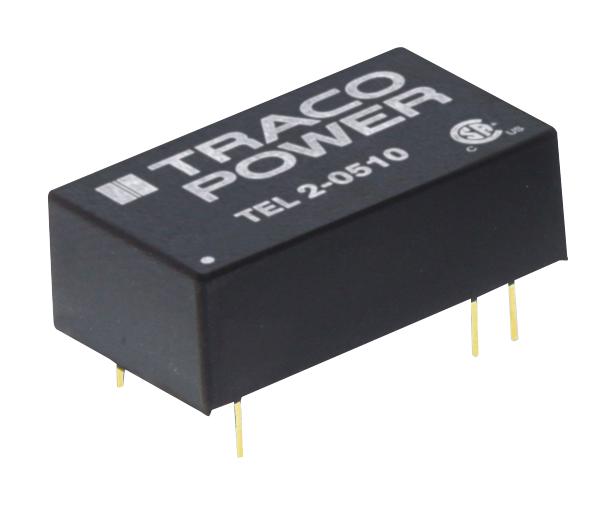

TRACO POWER TEL20523 DC/DC Converter
The TEL2 series comprises compact, high-efficiency 2 Watt isolated DC/DC converters in a DIP-16 package, ideal for industrial and consumer electronics. Featuring a wide input range from 3.3 V to 45 V DC, these converters deliver regulated outputs with efficiencies up to 81%. They include short-circuit protection, UL/CSA safety standards, and operate from -40°C to +75°C. With a low profile and no external components required, they are suitable for space-constrained, reliable power conversion in various electronic applications.
TRACO POWER TEL20523 DC/DC Converter Specifications:
- Input voltage range: 3.3 VDC to 45 VDC
- Output voltage options: 3.3 V, 5 V, 12 V, 15 V, 45 V
- Output current: up to 500 mA
- Efficiency: up to 81%
- Operating temperature range: -40°C to +75°C
- Isolation voltage: 1500 VDC (input/output)
- Isolation capacity: 250 pF max.
- Isolation resistance: >1,000 M Ohm (500 VDC)
- Ripple and noise: 50 mVpk-pk
- Short circuit protection: indefinite, automatic recovery
- Mechanical: DIP-16 plastic package, non conductive FR4, epoxy potting
- Weight: 5.1 g
- Soldering temperature: max 265°C / 10 sec.
- Regulation: load variation 25-100%, input variation Vin min to Vin max 0.5%
- Safety approvals: UL/cUL 60950-1, IEC/EN 60950-1, CSA 60950-1-03
Buy the TracoPower TEL2 – Reliable DC/DC Converters for Industrial Applications
Purchase the TracoPower TEL2 series 2 Watt isolated DC/DC converters online today and enhance your electronic systems with reliable, compact power solutions. Designed for industrial and consumer applications, these converters feature wide input ranges, regulated outputs, and high efficiency up to 81%. Their DIP-16 plastic package allows space-saving installation without external components. With robust short-circuit protection, UL and CSA safety compliance, and operating temperatures from -40°C to +75°C, they guarantee performance and safety in demanding environments. Order now for quick delivery and expert support.
Order your TracoPower TEL2 series 2 Watt isolated DC/DC converters today and ensure dependable power regulation in your industrial electronics projects.
Frequently Asked Questions
Where can I buy TRACO POWER TEL20523?
You can click on the BUY or RFQ button to purchase TEL20523 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEL20523?
You can download the TEL20523 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEL20523?
TRACO POWER
