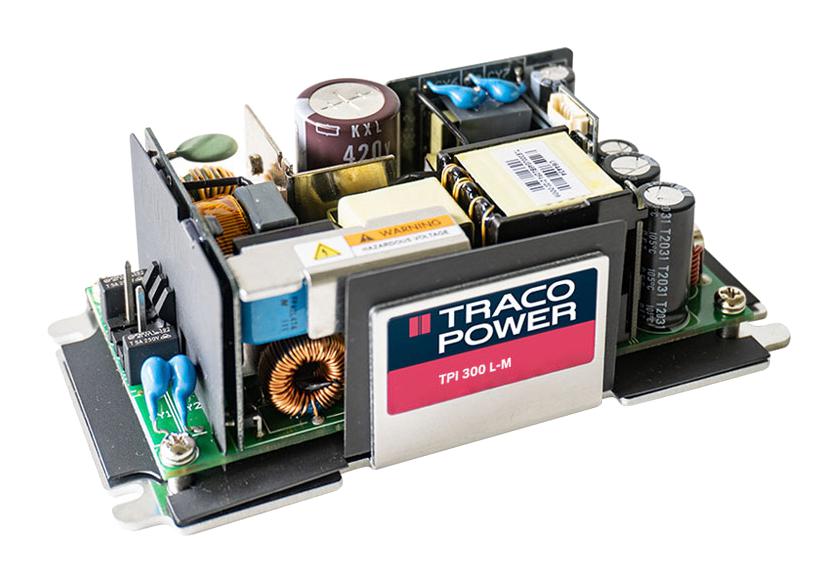

TRACO POWER TPI300148LM industrial power supply
The TPI 300L-M series is a set of encapsulated AC/DC power supplies in an open frame package style. These power supplies feature reinforced double I/O isolation rated at 3000 VAC, complying with the latest industrial safety standards. They offer high efficiency, enabling a high power density in a compact design measuring approximately 4.6 inches by 2.44 inches. The operating temperature range is from -40°C to +85°C, with derating above 50°C. Under natural convection, these units deliver up to 180W, with a maximum of 300W when forced airflow is applied. They can also provide a peak power output of 360W for short durations of 5 seconds. Designed for industrial and medical applications, they meet EMC requirements and ensure high reliability through the use of high-quality components and effective thermal management. Additional features include active power factor correction greater than 0.9, operation at altitudes up to 5000 meters, and protection class II readiness. They come with a 3-year warranty, making them suitable for demanding safety, space-critical, and medical device applications.
TRACO POWER TPI300148LM industrial power supply Specifications:
- Power Density: 300 Watt in 4.6 x 2.44-inch package
- Isolation Voltage: Reinforced double I/O isolation rated at 3000 VAC
- Efficiency: Up to 93%
- Operating Temperature: -40°C to +85°C with derating above 50°C
- Peak Power: 360 Watt for 5 seconds
- Input Voltage Range: 85 - 264 VAC / 100 - 240 VAC / 120 - 370 VDC (designed, no certification)
- Input Frequency: 47-63 Hz
- Output Power: varies from 12V, 15V, 24V, 36V, 48V, 53V options, max 300W
- Protection Class: II prepared
- Altitude Operation: Up to 5000 meters
- Efficiency: Up to 93%
- EMC & Safety Standards: IEC/EN/UL 62368-1, EN 65032, FCC Part 15
- Dimensions: Approx. 4.6 inches x 2.44 inches
- Temperature Range: -40°C to +85°C
- Warranty: 3 years
Buy the Traco Power TPI300148LM – Reliable Industrial Power Supply for Medical and Automation
Experience unmatched reliability and efficiency with the Traco Power TPI300148LM industrial power supply. Designed for demanding environments, it features reinforced isolation, compact size, and high efficiency of up to 93%. Suitable for medical and industrial applications, this power supply operates from -40°C to +85°C, delivering stable power with peak outputs of 360W for 5 seconds. Its rugged build supports operation at altitudes up to 5000 meters, ensuring dependable performance in space-critical and safety-intensive installations. Buy online today for a trusted power solution.
Order your Traco Power TPI300148LM series today and give your industrial and medical projects the dependable power they deserve.
