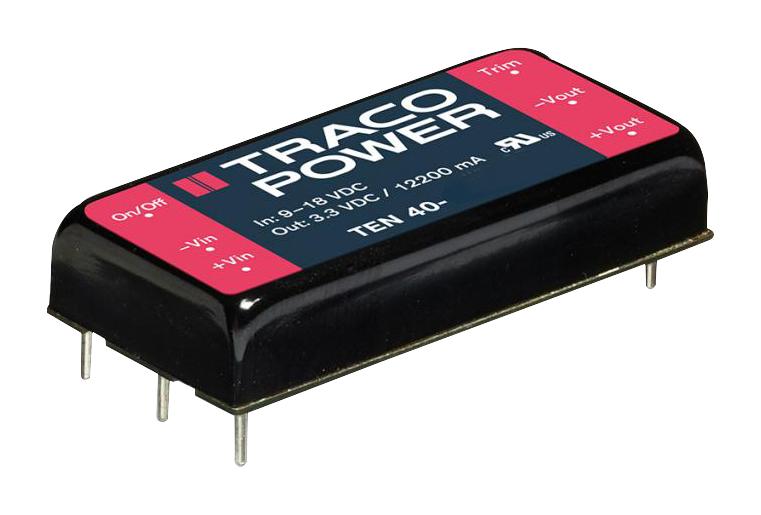

TRACO POWER TEN401211E Industrial DC/DC Converter
The TEN 40E DC/DC converter series expands Traco Power's existing 40W product lineup. Designed with a new approach to maximize quality and cost efficiency, these converters offer reliable performance without compromises. They feature a compact 2-inch by 1-inch metal package and support a 2:1 input voltage range. The high efficiency of up to 90% enables operation in a temperature range from -40°C to +70°C (natural convection, model dependent) without power derating. Certified according to IEC/EN/UL 62368-1 standards, they include features such as remote on/off, short circuit, overvoltage, and over temperature protection. Suitable for various industrial applications, they provide excellent temperature capabilities, minimal heat dissipation, and a 3-year warranty. Additional technical details include a switching frequency of approximately 250 kHz, 1600VDC I/O isolation, and a copper housing with a UL94 V-0 rated FR4 base.
TRACO POWER TEN401211E Industrial DC/DC Converter Specifications:
- Input Voltage Range: 9-18 VDC, 18-36 VDC, 36-75 VDC with 2:1 ratio
- Output Power: 40 Watts
- Efficiency: Up to 93%
- Operating Temperature: -40°C to +85°C (ambient), -40°C to +70°C (natural convection, model dependent)
- Isolation Voltage: 1600 VDC I/O isolation
- Remote On/Off: Yes, voltage controlled from 3.0 to 12 VDC
- Protection: Short circuit, overvoltage, overtemperature
- Switching Frequency: Approximately 250 kHz
- Dimensions: 25.4 mm x 50.8 mm x 12.7 mm (2” x 1” x 0.5”)
- Housing Material: Copper with UL94 V-0 rated FR4 base
- Certifications: IEC/EN/UL 62368-1
- Power Derating: No derating from -40°C to +70°C (model dependent), up to 93% efficiency
- Protection Modes: Automatic recovery overtemperature, short circuit
- Connection Type: Through-hole (THD)
- Capacitive Load Capability: Up to 22,000 pF for single output
Buy the Buy Traco Power DC/DC Converter Part Number TEN401211E Online
Purchase the Traco Power TEN 40E series DC/DC converter online today to benefit from high efficiency up to 93%, wide input voltage range, and comprehensive protection features. Designed for industrial use, these reliable 40W power modules include remote on/off, overvoltage, overtemperature, and short circuit protection. Their compact metal package ensures minimal heat development and efficient operation across a broad temperature range. Backed by a 3-year warranty and industrial certifications, they are ideal for demanding applications requiring dependable power conversion in a space-saving form factor.
Buy Traco Power TEN 40E series converter now and enjoy high efficiency, reliable protection features, and certification for industrial applications.
Frequently Asked Questions
Where can I buy TRACO POWER TEN401211E?
You can click on the BUY or RFQ button to purchase TEN401211E from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN401211E?
You can download the TEN401211E datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN401211E?
TRACO POWER
