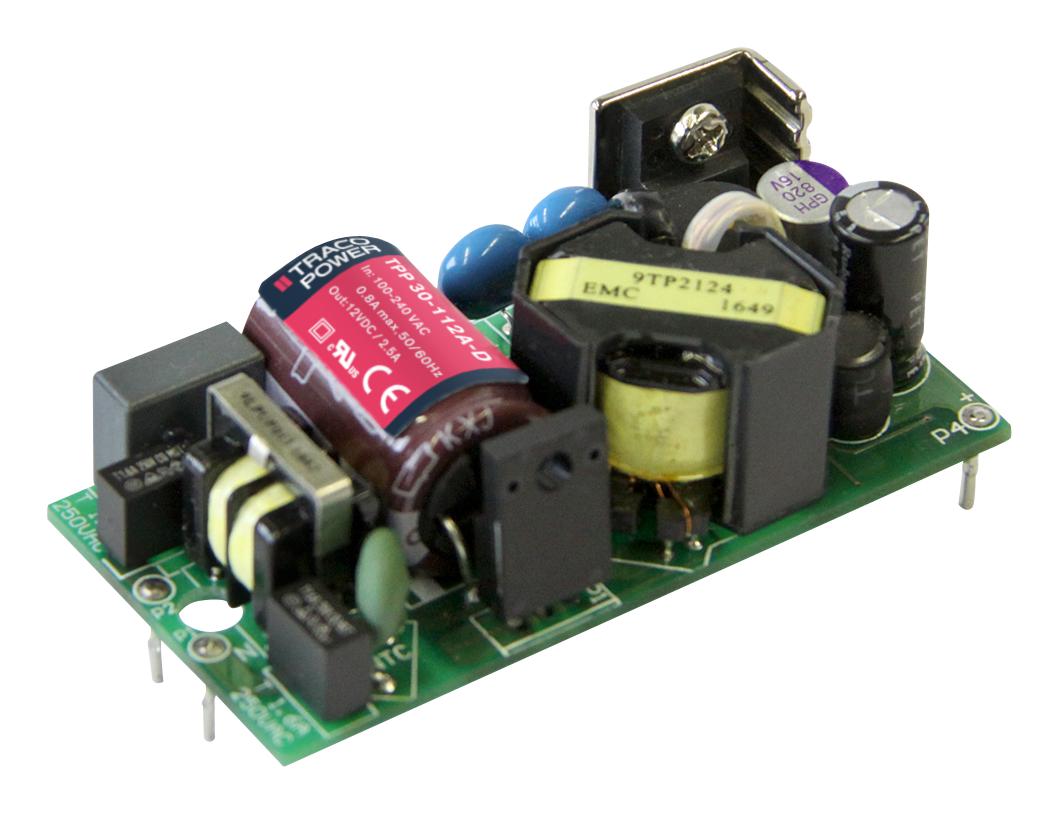

TRACO POWER TPP30124AD Medical Power Supply
The TPP 30A-D series is a compact, high-efficiency 30-watt medical power supply designed for medical equipment and BF applications. It features reinforced double insulation, low leakage current below 75 pA, and compliance with IEC 60601-1 3rd edition for 2x MOPP certification. The unit operates at altitudes up to 5000 meters, offers an efficiency of up to 92%, and covers an operating temperature range from -40°C to +60°C with derating at higher temperatures. It meets EMC standards IEC 60601-1-2 4th edition, has short circuit protection, overvoltage safety, and is suitable for demanding medical and industrial environments.
TRACO POWER TPP30124AD Medical Power Supply Specifications:
- Output Power: 30 W
- Input Voltage: 85 - 264 VAC, 120 - 370 VDC
- Output Voltage Range: 3.3 V to 48 V (adjustable within specified limits)
- Efficiency: Up to 92%
- Operating Temperature: -40°C to +60°C (derating beyond 85°C at 50% load)
- Altitude: Up to 5000 m
- Leakage Current: <75 pA
- Protection Class: II (Reinforced Insulation)
- Isolation Test Voltage: 5,657 VDC input to output
- Short Circuit Protection: Continuous, automatic recovery
- Overvoltage Protection: 125% to 140% of Vout nominal
- Cooling: Natural convection
- Compliance: IEC 60601-1, IEC 60601-1-2, EN 62368-1
- Dimensions: 1.36” x 2.74” (34.6mm x 69.7mm)
- Weight: 58g
- Vibration Standards: IEC 60068-2-6
- Protection: Reinforced insulation, creepage and clearance of 8 mm
Buy the TracoPower TPP30A-D – Reliable Medical Power Supply for Industrial Applications
Secure your medical and industrial projects with the TracoPower TPP30A-D power supply. This high-efficiency unit offers reinforced insulation, low leakage, and compliance with international standards, ensuring safety and reliability. Its compact design fits easily into various applications, while features like automatic short circuit recovery and overvoltage protections enhance operational safety. Perfect for demanding environments, this 30-watt power supply guarantees stable voltage, low noise, and compliance with EMC standards, providing peace of mind, durability, and excellent performance for critical devices.
Buy TracoPower TPP30A-D now and experience unmatched reliability and performance in medical and industrial power solutions.
