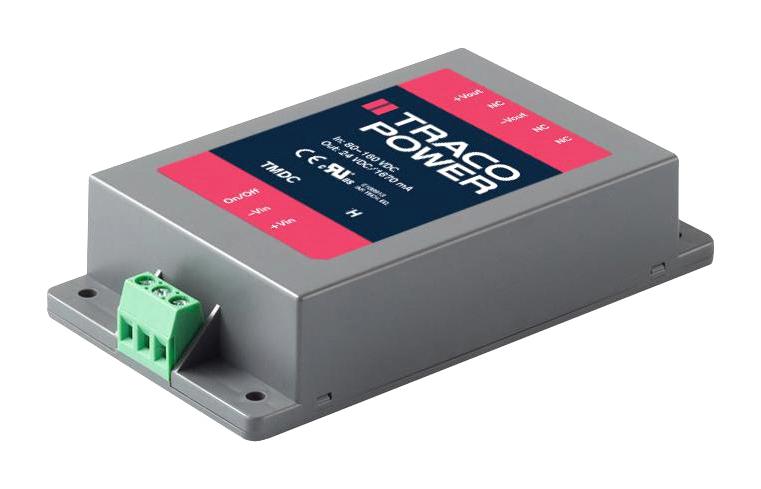

TRACO POWER TMDC407223H Industrial DC/DC Converter
The TMDC 40H Series from Traco Power is a high-efficiency, fully encapsulated 40-watt industrial DC/DC converter designed for harsh environments. It features a high 2:1 input voltage range of 80-160 VDC, reinforced 3000 VAC I/O isolation, and integrated filters to meet EMC standards EN 55032 and EN 55035. Operating from -40°C to +75°C without derating, it provides reliable regulated outputs. Certified under UL 62368-1 and IEC 62368-1 safety standards, it also offers remote on/off control, overload, undervoltage, short circuit protection, and a 3-year warranty, making it ideal for industrial and battery applications requiring reinforced isolation and safety compliance.
TRACO POWER TMDC407223H Industrial DC/DC Converter Specifications:
- Input Voltage Range: 80-160 VDC
- Output Power: 40 Watts
- Output Voltages: 5.1 VDC, 12 VDC, 15 VDC, 24 VDC, ±12 V, ±15 V, 48 VDC
- Maximum Input Surge Voltage: 170 VDC (100 ms)
- Efficiency: 87-89%
- Isolation Voltage: 3000 VAC
- Operating Temperature Range: -40°C to +75°C (no derating)
- MTBF: 580,000 hours
- Protection: Overload, undervoltage, short circuit, overvoltage protection
- Safety Certifications: UL 62368-1, IEC 62368-1
- EMC Standards: EN 55032 Class A emission, EN 55035 immunity
- Remote On/Off Control: 3.5 to 12 VDC (Remote On), 0 to 1.2 VDC (Off)
- Dimensions: Compact plastic encapsulated module, weight 162g
- Cooling: Natural convection
- Connection: Screw terminal.
Buy the Buy Traco Power DC/DC Converter Series TMDC 40H Part Number TMDC407223H Online
Enhance your projects with the Traco Power TMDC 40H Series industrial DC/DC converter. Fully encapsulated, high efficiency, reinforced 3000 VAC isolation, operating from -40°C to +75°C without derating. Certified for safety (UL 62368-1, IEC 62368-1) and EMC compliant with EN 55032 and EN 55035 standards. Features remote on/off, overload, undervoltage, short circuit protection, and safeguards for harsh environments. Perfect for industrial automation, battery systems, and demanding power applications needing reliable and certified power modules.
Order your Traco Power TMDC 40H Series 40 Watt DC/DC Converter today and ensure reliable, safe power for your industrial and battery applications.
Frequently Asked Questions
Where can I buy TRACO POWER TMDC407223H?
You can click on the BUY or RFQ button to purchase TMDC407223H from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMDC407223H?
You can download the TMDC407223H datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMDC407223H?
TRACO POWER
