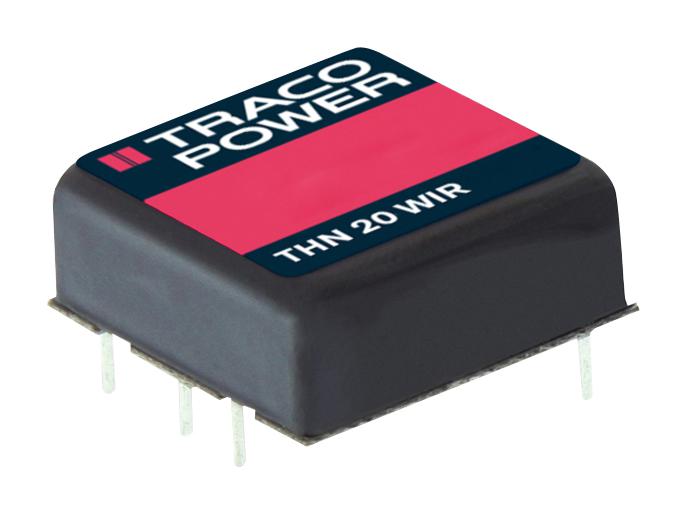

TRACO POWER THN204811WIR DC/DC Converter
The THN 20WIR series offers rugged, high-efficiency 20-watt DC/DC converters designed for harsh environments like railway and transportation systems. Featuring a compact 1” x 1” metal case, these converters support a wide input voltage range of 9-36, 18-75, 36-160 VDC and operate reliably from -40°C to +65°C without derating. They include features such as remote On/Off, output voltage trim, overload, overvoltage, short circuit protection, and internal EMI filters, making them ideal for industrial, transportation, and automation applications. Certified for EN 50155, EN 61373, EN 45545-2, and IEC/EN 62368-1 safety standards, ensuring performance and safety in critical systems.
TRACO POWER THN204811WIR DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC, 18-75 VDC, 36-160 VDC
- Output Power: 20 Watts
- Output Voltage: 3.3 V, 5.1 V, 12 V, 15 V, 24 V, and dual outputs ±12 V, ±15 V, ±24 V
- Efficiency: up to 91%
- Operating Temperature: -40°C to +65°C without derating
- Isolation Voltage: 3000 VDC input to output
- Protection: Overload, overvoltage, short circuit
- Dimensions: 25 mm x 25 mm x 10 mm (1” x 1” x 0.4”)
- Input Surge Voltage: 185 VDC (max 1 sec)
- EMC Compliance: EN 55032, EN 60121-3-2, EN 65032, EN 65033
- Safety: EN 62368-1, IEC 62368-1, UL 62368-1, EN 50155, EN 61373
- Certification: RoHS, REACH, EN 45545-2 flame retardant compliance
- Switching Frequency: 270-330 kHz
Buy the Buy Traco Power DC/DC Converter Part Number THN204811WIR Online
Purchase the Traco Power THN 20WIR series online for high efficiency and reliability in industrial and transportation systems. These rugged 20-watt converters feature wide input voltage ranges up to 160 VDC, operate in harsh temperature environments from -40°C to +65°C, and include essential protection features like overload, overvoltage, and short circuit protection. Certified for railway standards EN 50155 and EN 61373, and fire safety EN 45545-2, these compact converters support applications demanding high safety and performance standards. Easy to integrate with remote On/Off and voltage trim functions, order online today for fast delivery.
Get Traco Power THN 20WIR today—compact and highly reliable with extensive railway and industrial approvals, built for long-lasting durability in tough environments.
Frequently Asked Questions
Where can I buy TRACO POWER THN204811WIR?
You can click on the BUY or RFQ button to purchase THN204811WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THN204811WIR?
You can download the THN204811WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THN204811WIR?
TRACO POWER
