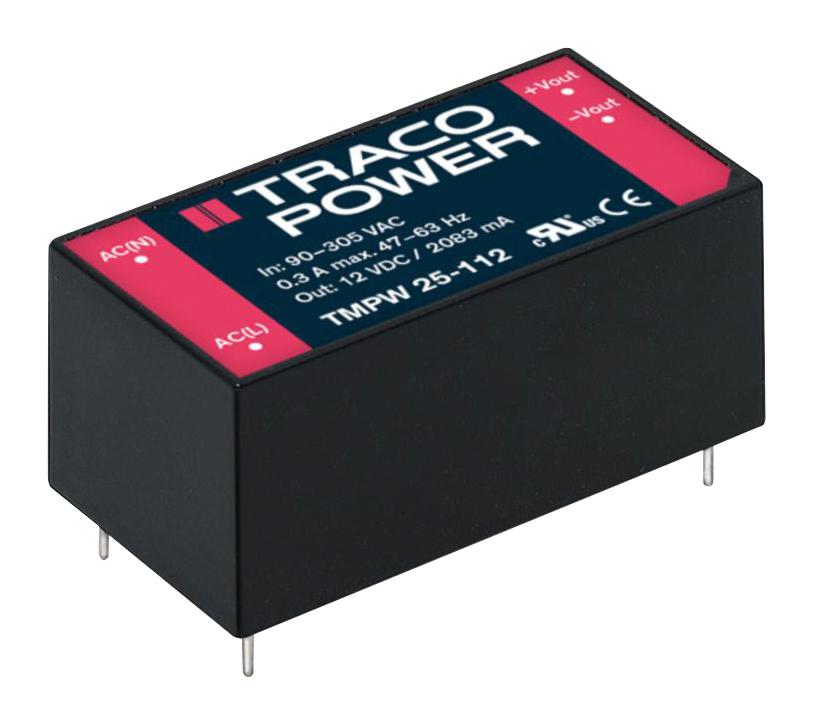

TRACO POWER TMPW25112 Power Supply
The TMPW 25 series is a compact 25 Watt AC/DC power supply designed for industrial and household applications. Operating over a wide input range of 90-305 VAC, it features high efficiency up to 88%, low no-load power consumption under 0.1W, and comprehensive safety certifications including EN 62368-1 and UL 62368-1. Encased in a small plastic housing, it offers reinforced insulation, an isolation voltage of 47000 VAC, and a temperature range of -40°C to +70°C for reliable performance. Its internal EN 55032 class B filter reduces external components, making it ideal for space-constrained circuits requiring robust, energy-efficient power conversion.
TRACO POWER TMPW25112 Power Supply Specifications:
- Output Power: 25 W
- Output Voltage: 12 VDC
- Output Current: 2,083 mA
- Input Voltage Range: 90 - 305 VAC
- Input Frequency: 47 - 63 Hz
- Efficiency: up to 88%
- No load Power: <0.1 W
- Isolation Voltage: 47000 VAC
- Operating Temperature Range: -40°C to +70°C
- Dimensions: 2.07" x 1.08" x 0.6" (52.5 mm x 27.5 mm x 15 mm)
- Protection Class: II (Reinforced Insulation)
- Certifications: EN 62368-1, UL 62368-1, EN 60335-1
- Ripple and Noise: 2% max. of Vout
- Hold-up Time: 36 ms at 230 VAC
- Short Circuit Protection: Continuous, automatic recovery
- Overvoltage Protection: 105-145% of Vout
- Ingress Protection: Encapsulated plastic case
- Housing Material: UL 94 V-0 rated plastic
- Cooling System: Natural convection
- Weight: 55g
- Environmental Compliance: RoHS, REACH
Buy the Traco Power Series TMPW 25 AC/DC Power Supply: TMPW25112
Purchase the Traco Power TMPW 25 series 12V 25W power supply online today and enjoy dependable energy conversion for industrial, commercial, or household applications. This compact, high-efficiency module features a wide input range of 90-305 VAC, reinforced insulation, and low no-load consumption, ensuring optimal performance under demanding conditions. Its internal EMI filter and safety certifications streamline your design, reducing external components and space needs. Trust in its robust construction, extensive safety compliance, and reliable operation—perfect for space-sensitive projects requiring durable, energy-efficient power solutions. Get yours now for seamless integration.
Order your Traco Power Series TMPW 25 12V power supply today and ensure reliable, efficient power for your industrial or home automation projects.
Frequently Asked Questions
Where can I buy TRACO POWER TMPW25112?
You can click on the BUY or RFQ button to purchase TMPW25112 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMPW25112?
You can download the TMPW25112 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMPW25112?
TRACO POWER
