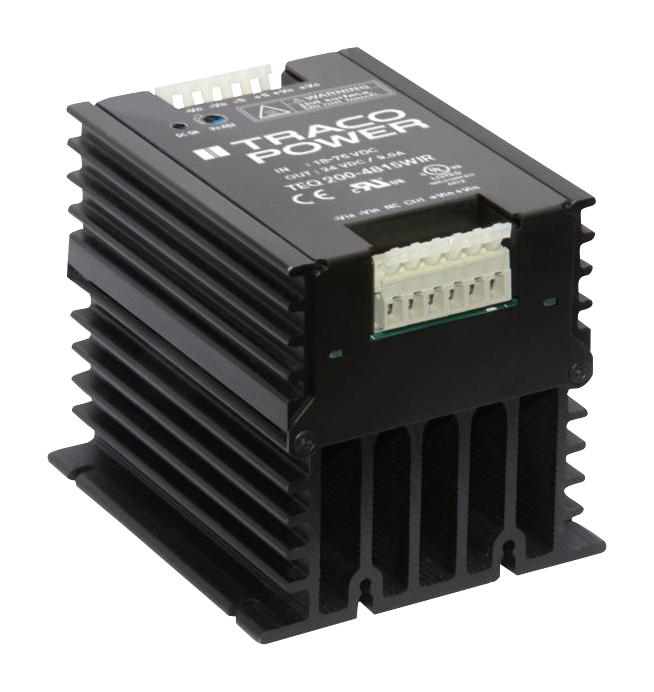

TRACO POWER TEQ2007212WIR Industrial DC/DC Converter
The TEQ 200WIR series from TracoPower consists of 200W isolated DC/DC converters designed for industrial applications. Encased in a rugged, sealed metal housing, these modules are suitable for chassis mounting where PCB installation isn’t possible. Features include an ultra-wide 4:1 input voltage range, reverse polarity protection, output voltage trimming, remote on/off, undervoltage lockout, soft-start, output current limiting, overvoltage protection, and automatic recovery short-circuit protection. Approved by IEC/EN 60950-1, UL 508, CSA C22.2, and UL 60950-1 standards, they are suitable for demanding environments. The series provides options for nominal inputs of 48VDC or 110VDC and outputs of 12VDC, 24VDC, 28VDC, or 48VDC with varying current capabilities. These converters achieve efficiencies up to 90%, feature high power density with good thermal performance, and are approved for railway applications (EN 50155). They comply with emission standards, with ripple and noise levels suitable for sensitive electronics, and offer isolation voltages of up to 2250VDC (I/O) and 1600VDC (input/case). The operating temperature range spans from -40°C to 105°C, with derating considerations up to +70°C. The typical PWM switching frequency is 250kHz.
TRACO POWER TEQ2007212WIR Industrial DC/DC Converter Specifications:
- Input Voltage: 12 VDC (9.6 ~ 13.2), 19 - 75 VDC, 48 VDC (38.4 - 52.8), 43 - 160 VDC, 110 VDC (9.6 ~ 13.2)
- Output Voltage: 12 VDC, 24 VDC, 28 VDC, 48 VDC
- Output Current: up to 90A depending on model
- Efficiency: up to 90%
- Operating Temperature: -40°C to +105°C (up to +70°C without derating)
- Storage Temperature: -40°C to +105°C
- Isolation Voltage: Input/Output 2250 VDC, Input/Case 1600 VDC, Output/Case 1600 VDC
- Ripple & Noise: 125-350 mVp-p depending on model
- MTBF: exceeding 270,000 hours (at +55°C)
- Protection: Overvoltage, Short circuit, Reverse polarity with diode, Undervoltage lockout
- Certifications: IEC/EN 60950-1, UL 508, CSA C22.2, UL 60950-1, EN 50155
- Switching Frequency: 250 kHz
- Physical: Aluminum casing, silicone potting, weight approximately 800 g
- Conforms to EMC standards EN 55032, EN 61000-4 series for immunity and emissions
Buy the TracoPower TEQ2007212WIR – Reliable Industrial DC/DC Power Converter for Railway Applications
Purchase the TracoPower TEQ 200WIR series online today and ensure your industrial or railway applications have reliable, high-efficiency power conversion. These rugged, sealed modules operate efficiently from -40°C to +105°C, with derating up to +70°C, and provide ultra-wide input voltage ranges suitable for demanding environments. Features include power protection, remote on/off, and high isolation voltage. Certified standards ensure safety and compliance, while their high efficiency up to 90% reduces power loss. Order now for seamless installation, excellent thermal performance, and long-term dependable operation.
Get TracoPower TEQ2007212WIR today—built for precision, efficiency, and durability in demanding industrial and railway environments.
