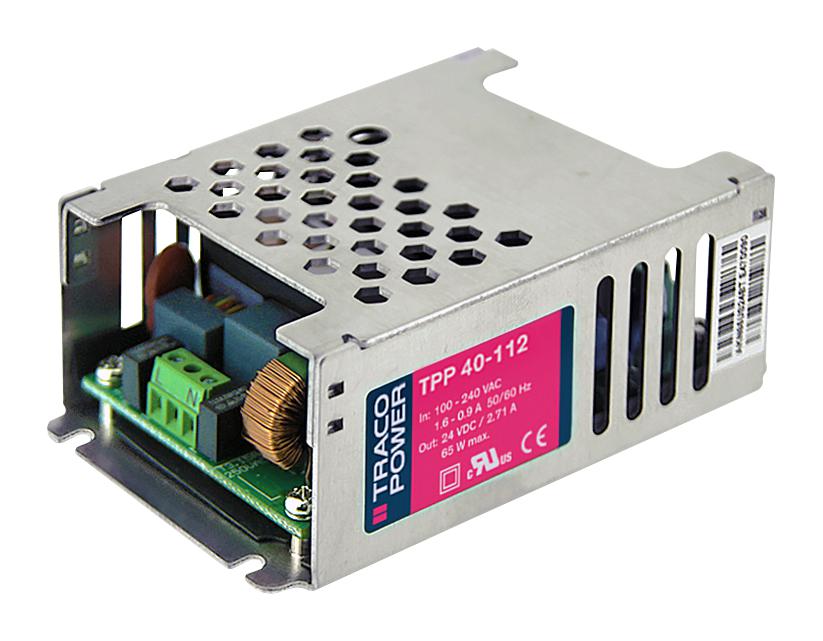

TRACO POWER TPP40112 Medical Power Supply
The TPP 40 Series is a highly reliable 40 Watt AC/DC power supply designed for medical and industrial applications. It features reinforced double I/O isolation according to IEC/EN/ES 60601-1 standards for 2 x MOPP, suitable for BF applications with low leakage current below 75 pA. The power supply offers excellent efficiency up to 92%, compact dimensions (2.44" x 3.0"), and a broad input voltage range of 85-264 VAC or 120-370 VDC. Operating temperature spans -40°C to +70°C, with high thermal management and EMC compliance, making it ideal for space-critical safety applications in demanding environments.
TRACO POWER TPP40112 Medical Power Supply Specifications:
- Input Voltage: 85-264 VAC / 120-370 VDC
- Input Frequency: 50-63 Hz
- Output Power: Up to 40 W
- Output Voltage: 12V, 15V, 24V, and multi-output options
- Output Current: Up to 3.34 A (varies by model)
- Efficiency: Up to 92%
- Operating Temperature: -40°C to +70°C, derating up to 85°C at 50% load
- Isolation Voltage: 5657 VDC input to output, 3535 VDC input to case
- Leakage Current: <75 pA
- Protections: Short circuit, overvoltage, overload
- Dimensions: Approx. 2.44" x 3.0" x 1.0" (L x W x H)
- Mounting: Screw terminal connection
- Compliance: IEC 60601-1, IEC 60601-1-2 Ed. 4, UL, FCC Part 18, and RoHS
Buy the Traco Power TPP40112 – Reliable Medical Power Supply for Industrial Applications
Purchase the Traco Power TPP series 40 Watt medical power supply online today and experience high reliability, low leakage current, and excellent efficiency. Designed to meet IEC 60601-1 and IEC 60601-1-2 standards, this power supply offers reinforced insulation and multiple protections for sensitive applications. Its broad input voltage range and operating temperature support versatile use in demanding environments. With a compact size and robust thermal management, order now to ensure your medical and industrial devices receive dependable, safe power and enjoy our fast, secure online checkout process.
Order your Traco Power TPP40112 series medical-grade power supply today and ensure safe, efficient power delivery for critical medical and industrial projects.
Frequently Asked Questions
Where can I buy TRACO POWER TPP40112?
You can click on the BUY or RFQ button to purchase TPP40112 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TPP40112?
You can download the TPP40112 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TPP40112?
TRACO POWER
