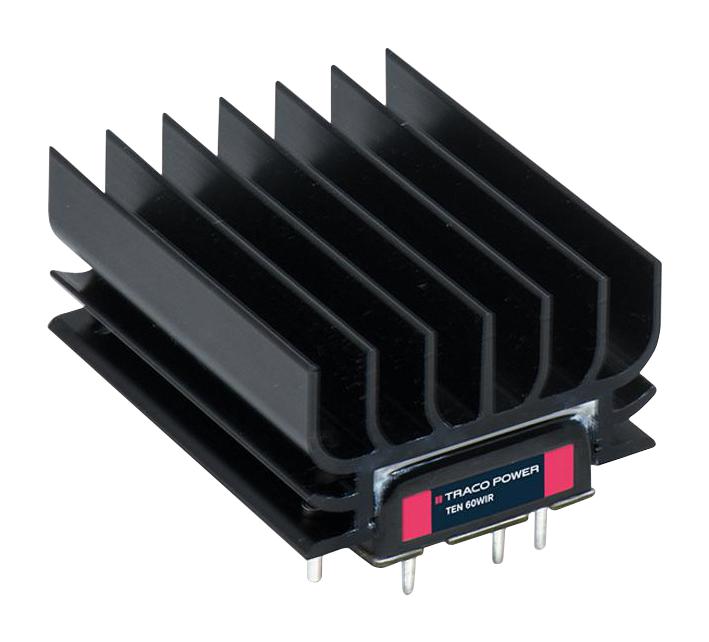

TRACO POWER TEN604822WIR Industrial DC/DC Converter
The TEN 6OWIR Series is a rugged, railway-approved 60 Watt DC/DC converter in a compact 2”x1” package, designed for demanding applications with wide input voltage ranges and high efficiency up to 92%. It features EN 50155 and EN 61373 railway approvals, along with fire safety qualification per EN 45545-2, making it ideal for transportation systems. Equipped with a heatsink, adjustable output, remote on/off, and 3,000 VDC I/O isolation, it ensures reliable performance across operating temperatures from -40°C to +70°C without derating, enabling robust industrial and transportation applications.
TRACO POWER TEN604822WIR Industrial DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC, 18-75 VDC, 36-160 VDC, surge voltage up to 200 VDC for 1s
- Output Power: 60 Watts
- Output Voltage Adjustment: ±10% to +20%
- Efficiency: Up to 92%
- Isolation Voltage: 3,000 VDC input to output
- Operating Temperature: -40°C to +70°C without derating
- Humidity: 95% max. (non-condensing)
- Vibration: MIL-STD-810F, EN 61373 compliant
- Shock/Vibration Resistance: Enhanced against mechanical shocks
- Schottky Diode: Included for overvoltage protection
- Remote On/Off Control: Yes, voltage controlled
- Short Circuit Protection: Continuous, automatic recovery
- MTBF: 724,500 hours (MIL-HDBK-217F)
- Compliance: EN 50155, EN 61373, EN 45545-2, IEC/EN 62368-1, UL 62368-1
- Dimensions: 25.4 mm x 50.8 mm x 11.5 mm
- Housing Material: Copper, non-conductive potting with silicone insulation
- Cooling: Natural convection
- Start-up Time: 30 ms (typ.)
Buy the Buy Traco Power DC/DC Converter Part Number TEN604822WIR Online
Purchase the Traco Power TEN 6OWIR Series 60 Watt DC/DC converter online today to ensure high efficiency, robust railway approval, and reliable power conversion in demanding environments. With wide input ranges, adjustable outputs, and advanced safety features, this converter is ideal for transportation, industrial, and automation systems. Enjoy quick delivery, trusted quality, and technical support, making it the ideal choice to power your critical applications with confidence and ease. Order now for optimal performance and peace of mind.
Buy Traco Power TEN 6OWIR Series 60 Watt rugged DC/DC converter now and experience unmatched reliability and performance for railway and industrial applications.
