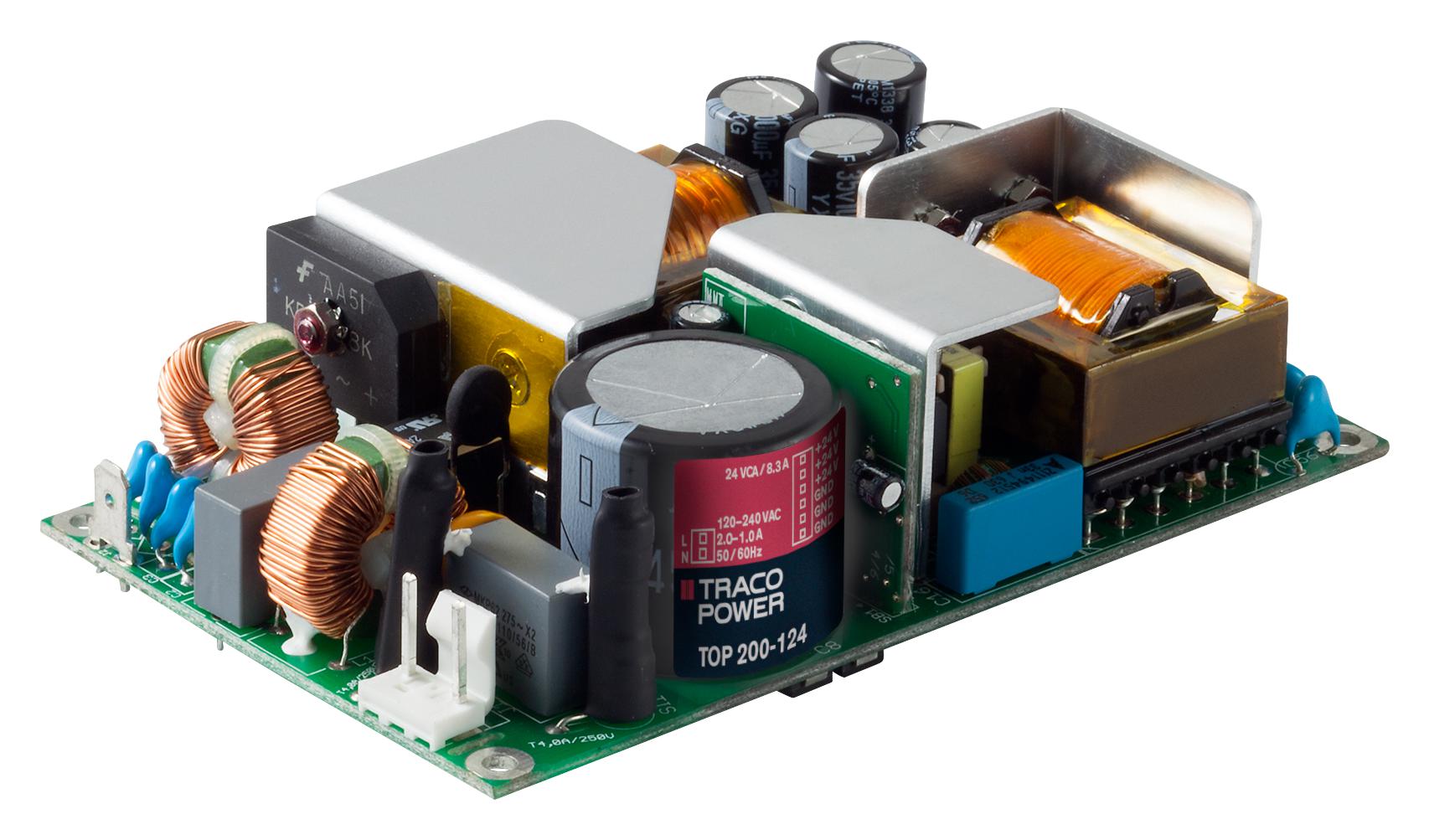

TRACO POWER TOP200148 industrial power supply
The TOP 200 Series AC/DC power supplies deliver up to 200 W output power within a compact 3.0” x 5.0” footprint, featuring high efficiency exceeding 90%. Designed for industrial and IT applications, they operate reliably from -25°C to +70°C, without the need for cooling fans. These power supplies comply with global safety standards, including UL 60950-1 and EN 61000-3-2, and are suitable for space-critical, cost-effective solutions in commercial and industrial electronics, offering robust thermal management and long-term reliability.
TRACO POWER TOP200148 industrial power supply Specifications:
- Input Voltage: 85 - 264 VAC, 47 - 63Hz
- Output Power: 200 W
- Output Voltage Options: 12 VDC, 15 VDC, 24 VDC, 48 VDC
- Output Current Max: 16A for 12 V, 13A for 15 V, 83A for 24 V, 42A for 48 V
- Operating Temperature Range: -25°C to +70°C
- Efficiency: >90%
- Dimensions: 76.2 x 127 mm
- Protection Class: I and II
- Isolation Voltage: Input/Output 3000 VAC, Input/Field Ground 1500 VAC
- Ripple & Noise: <120 mVp-p (20MHz bandwidth)
- Switching Frequency: 100 kHz
- MTBF: Calculated per IEC 61709
- Certifications: UL 60950-1, CSA 60950-1
- Environmental Compliance: RoHS, Reach
Buy the Traco Power Series TOP 200 AC/DC Power Supply: TOP200148
Experience reliable power delivery with the Traco Power Series TOP 200148—compact, highly efficient, and designed for industrial and IT environments. Operating from -25°C to +70°C with over 90% efficiency, it supplies up to 200 W of output power in a small footprint. Convection cooling eliminates the need for fans, reducing maintenance and failures. It complies with global safety standards like UL and EN, offering a robust, space-saving solution for critical industrial applications. Buy now for dependable performance and long-term peace of mind.
Get Traco Power Series TOP 200148 today—built for industrial reliability and long-lasting durability.
Frequently Asked Questions
Where can I buy TRACO POWER TOP200148?
You can click on the BUY or RFQ button to purchase TOP200148 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TOP200148?
You can download the TOP200148 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TOP200148?
TRACO POWER
