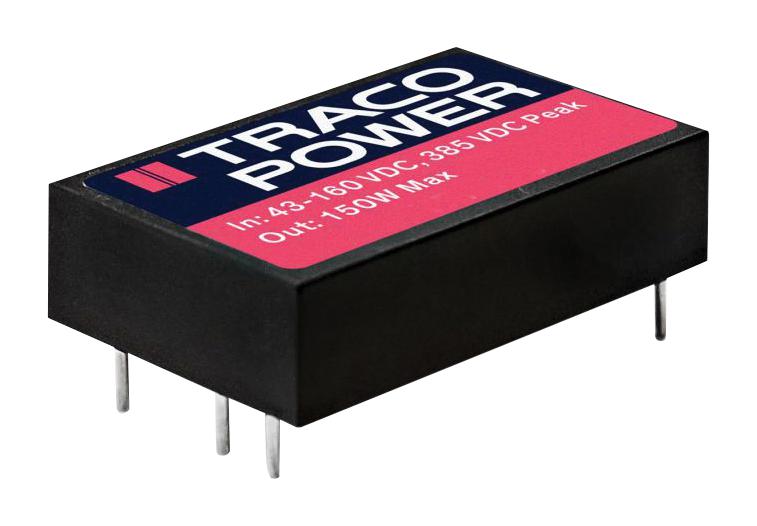

TRACO POWER TFI150 Surge Filter
The TFI 150 surge filter by Traco Power is designed for railway and industrial DC systems, protecting against high voltage transients up to 385 VDC. This compact device clamps over-voltage transients, ensuring the safe operation of downstream DC/DC converters. It operates over a wide input voltage range of 43 to 160 VDC, withstanding temperatures from -40°C to +95°C and featuring UL94 V-0 potting. Suitable for battery systems of 72, 96, and 110 VDC, it offers reliable transient suppression and complies with NF F 01-510 standards, backed by a 3-year warranty.
TRACO POWER TFI150 Surge Filter Specifications:
- Input Voltage Range: 43 - 160 VDC
- Transient Voltage Max: 385 VDC
- Clamping Voltage: 168 VDC typical
- Start-up Voltage: 30 VDC max
- Brownout Voltage: 36 VDC min
- Power Max: 150W
- Temperature Range: -40°C to +95°C operating, -55°C to +125°C storage
- Case Material: Non-conductive black plastic with UL94 V-0 potting
- Weight: 22g
- Standards: RIA 12, NF F 01-510 Surge Susceptibility
- Vibration & Thermal Shock: MIL-STD-810F
- Dimensions: 15.24 mm x 5.1 mm x 5.08 mm (0.600 in x 0.200 in x 0.200 in)
- Pin Functions: +Vin, -Vin, +Vout, -Vout, NC
- Operating Temperature: -40°C to +95°C with derating
- Storage Temperature: 55°C to +125°C
- Relative Humidity: Up to 95%
Buy the Traco Series TFI Surge Filter: TFI150
Ensure your DC systems are protected from high voltage transients with the Traco Power TFI150 surge filter. Designed for railway and industrial applications, it clamps over-voltage transients up to 385 VDC, thereby safeguarding sensitive electronics and power modules. Compact and durable, it features a wide input voltage range of 43 to 160 VDC, operates efficiently from -40°C to +95°C, and complies with NF F 01-510 standards. Invest now online to secure your power systems with top-grade surge protection and reliable performance.
Buy Traco TFI150 surge filter now and experience unmatched reliability and transient suppression for railway and industrial DC systems.
Frequently Asked Questions
Where can I buy TRACO POWER TFI150?
You can click on the BUY or RFQ button to purchase TFI150 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TFI150?
You can download the TFI150 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TFI150?
TRACO POWER
