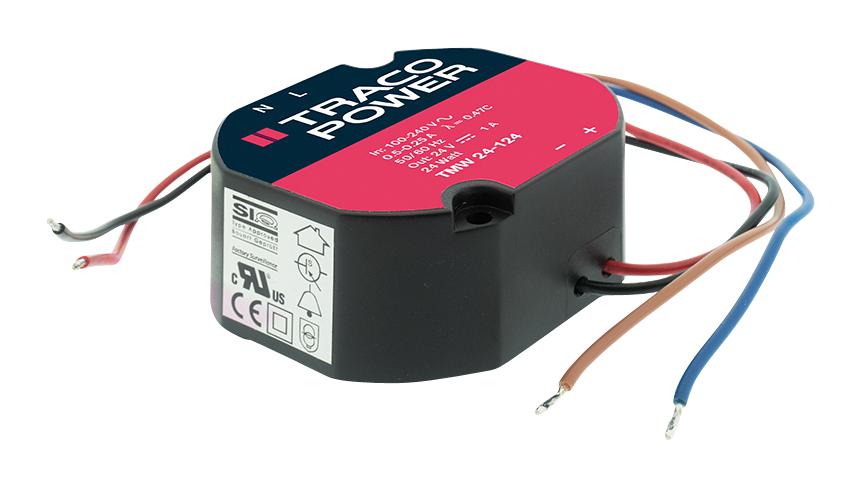

TRACO POWER TMW24105 Medical Power Supply
The TMW 24 series consists of fully encapsulated AC/DC power supplies suitable for medical, household, and industrial applications. These compact, dust-resistant, and waterproof units meet IEC/EN 62368-1, IEC/EN 60335-1, and IEC/EN 60601-1 standards, certified for 2xMOPP, and feature reinforced insulation for protection class II environments. Operating between -20°C and +80°C, they can be mounted in wall outlet boxes or screw-mounted inside furniture or wood. They include safety features like high leakage current safety, reinforced I/O isolation of 4000VAC, short-circuit, overvoltage, and overtemperature protections, backed by a 5-year warranty.
TRACO POWER TMW24105 Medical Power Supply Specifications:
- Input Voltage: 85 - 264 VAC
- Input Frequency: 47-63 Hz
- Output Power: 24 W
- Output Voltages: 5.1 VDC, 12 VDC, 24 VDC
- Output Currents: 4A, 2A, 1A
- Operating Temperature Range: -20°C to +80°C
- Ingress Protection: IP68
- Isolation Voltage: 4000 VAC reinforced
- Leakage Current: < 100 pA
- Short-circuit, Overvoltage, Overtemperature protections included
- Dimensions: approx. 200 mm x 97 mm x 50 mm
- Cooling System: Natural convection
- Mounting: Wall outlet boxes, screw mountable
- Safety Standards: IEC/EN 62368-1, IEC/EN 60335-1, IEC/EN 60601-1
- Certifications: 2xMOPP, reinforced insulation
- Power Factor: 0.45-0.55
- Ripple and Noise: 140 mVp-p
- Insulation Resistance: 100 MΩ at 500 VAC
- Case Material: Plastic, epoxy
- Weight: approx. 1319 g
Buy the Traco Power Series TMW 24 Power Supply: TMW24105
Secure your Traco Power Series TMW 24 power supply online today. Designed for demanding medical, industrial, and household applications, it offers compact size, high efficiency, reinforced insulation, and IP68 waterproof protection. Its wide input range from 85 to 264 VAC ensures compatibility with global standards. Features include reinforced I/O isolation of 4000VAC, short-circuit, overvoltage, and overtemperature protections, and safety certifications. Backed by a 5-year warranty, this power supply guarantees safe, reliable, and durable operation in harsh environments.
Order your Traco Power Series TMW 24 power supply today and ensure reliable performance for your medical, industrial, or household projects.
Frequently Asked Questions
Where can I buy TRACO POWER TMW24105?
You can click on the BUY or RFQ button to purchase TMW24105 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMW24105?
You can download the TMW24105 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMW24105?
TRACO POWER
