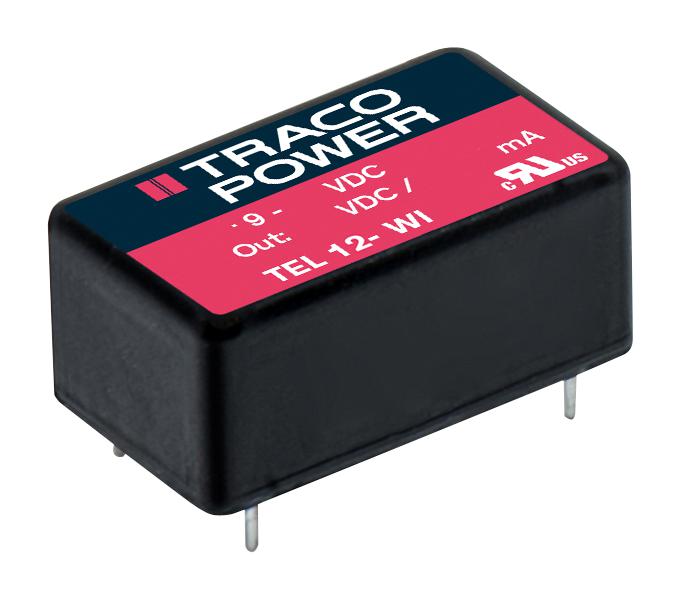

TRACO POWER TEL122412WI DC/DC Converter
The TEL 12WI series is a highly efficient 12 Watt DC/DC converter with an ultra-compact DIP-16 metal package, ideal for space-sensitive applications. It features a wide 4:1 input voltage range, achieving up to 88% efficiency, and supports operating temperatures up to +85°C. Built with an insulated metal case and internal filters, it complies with EMC standards. Suitable for industrial, instrumentation, and IT systems, it offers protection against short circuits and stabilizes output voltage with high precision. This reliable power module is perfect for demanding electronic projects requiring durable low-power conversion.
TRACO POWER TEL122412WI DC/DC Converter Specifications:
- Power: 12 Watts
- Input Voltage Range: 5.1 VDC to 75 VDC (various models), 4:1 wide range
- Output Voltage: 3.3 V to ±15 V (various models), dual outputs available
- Efficiency: Up to 88%
- Operating Temperature: -40°C to +85°C
- Isolation Voltage: 1600 VDC (input to output)
- Insulation: Functional insulation system
- Case Material: Aluminum alloy, black anodized
- Soldering Profile: Wave soldering at 260°C for 10 s max.
- Weight: 8.6 g
- Cooling: Natural convection
- Frequency: 480 KHz typical
- Safety: UL, IEC, EN 62368-1 standards
- Ripple & Noise: 70 mVp-p typical (20 MHz bandwidth)
Buy the Buy Traco Power TEL 12WI Part Number TEL122412WI Online
Purchase the Traco Power TEL 12WI series 12 Watt DC/DC converter online today for a compact, high-efficiency power module designed for demanding industrial, instrumentation, and IT applications. Its wide input range, excellent thermal performance, and built-in EMC filters ensure reliable operation across various environments. With a robust aluminum case, insulation, and certifications compliant with UL and IEC standards, this converter provides long-term performance and protection against short circuits. Perfect for space-critical projects, it delivers consistent, high-quality power with minimal thermal loss. Secure yours online now for fast delivery and seamless integration into your equipment.
Order your Traco Power TEL 12WI series 12 Watt DC/DC converter today and enhance your electronic systems with high efficiency and reliable power solutions.
Frequently Asked Questions
Where can I buy TRACO POWER TEL122412WI?
You can click on the BUY or RFQ button to purchase TEL122412WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEL122412WI?
You can download the TEL122412WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEL122412WI?
TRACO POWER
