TRACO POWER TMDC102422 Industrial DC/DC Converter
The TMDC 10 series by Traco Power consists of fully encapsulated 10-watt DC/DC converter modules suitable for harsh industrial environments. These modules feature an ultra-wide input voltage range of 9-36 VDC or 18-75 VDC, with excellent EMC immunity and low emissions thanks to integrated filters. They support operating temperatures from -40°C to +80°C without derating and provide 3,000 VDC isolation. Ideal for industrial automation, control systems, and rugged electronic applications, these compact, reliable converters include safety certifications, remote control functions, and robust overload protection.
TRACO POWER TMDC102422 Industrial DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC
- Output Power: 10 Watts
- Input Surge Voltage: 50 VDC for 24V models, 100 VDC for 48V models
- Operating Temperature: -40°C to +80°C without derating
- Isolation Voltage: 3,000 VDC
- Efficiency: Up to 86%
- Dimensions: 3.11 x 1.34 x 0.87 inches (79 x 34 x 22 mm)
- Protection: Overload, undervoltage, short circuit
- Safety Certifications: UL 62368-1, IEC 62368-1
- EMC Emissions: EN 55032 Class A
- EMC Immunity: EN 55035
- Connectors: Screw terminals
- Cooling: Natural convection
- MTBF: 4,100,000 hours
- Housing Material: UL 94V-0 rated plastic

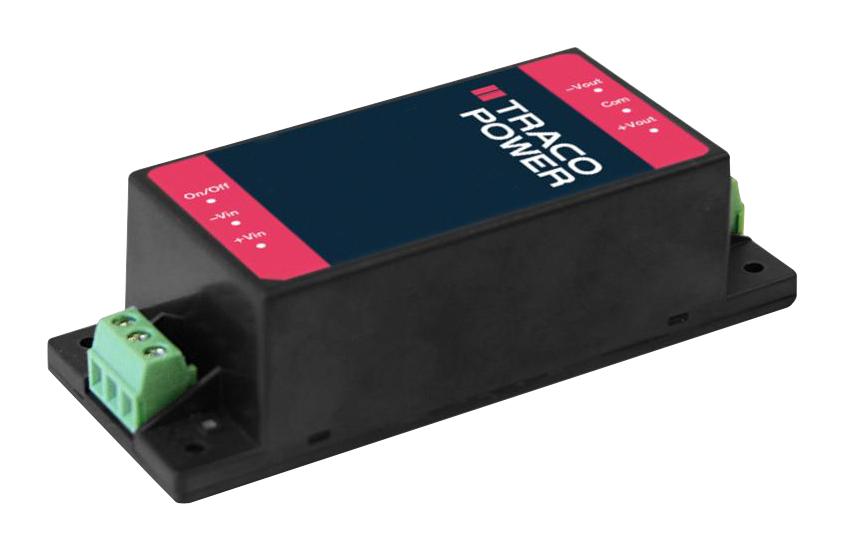

Buy the Buy Traco Power DC/DC Converter Part Number TMDC102422 Online
Enhance your industrial projects with the reliable Traco Power TMDC 10 series 10-watt DC/DC converters. Featuring ultra-wide input ranges, high efficiency up to 86%, and 3000V isolation, these modules are designed for harsh environments. They support operating temperatures from -40°C to +80°C without derating, ensuring optimal performance in demanding applications like automation systems, control units, and rugged electronics. Certified to UL 62368-1, with integrated filters for EMC compliance, they offer robust overload protection and remote control functions for versatile deployment.
Buy Traco Power TMDC 10 series DC/DC converter now and experience unmatched reliability and performance for harsh industrial applications.
Frequently Asked Questions
Where can I buy TRACO POWER TMDC102422?
You can click on the BUY or RFQ button to purchase TMDC102422 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMDC102422?
You can download the TMDC102422 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMDC102422?
TRACO POWER
