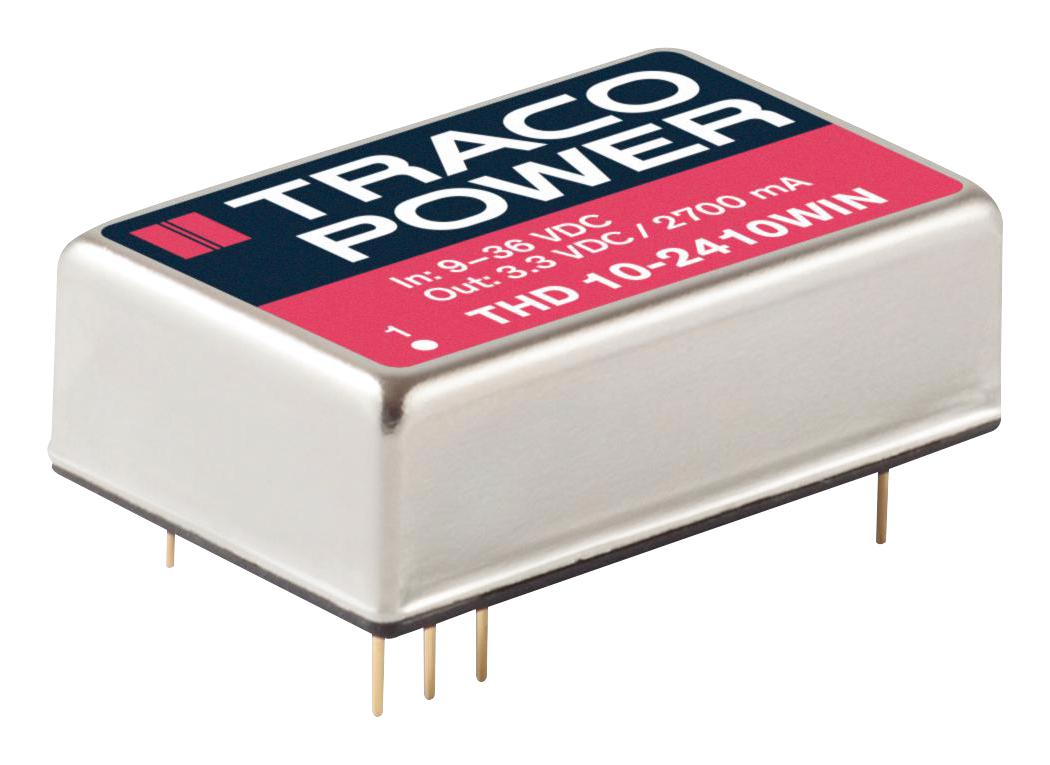

TRACO POWER THD101223N DC/DC Converter
The THD 10 series from Tracopower offers reliable 10W isolated DC/DC converters in a compact DIP-24 package. Featuring a wide 2:1 input voltage range, they provide high efficiency up to 89% and low ripple and noise at 100mVp-p. These converters include internal EMI filtering to meet EN 55022 Class A standards, overcurrent and overvoltage protection, and no minimum load requirement, simplifying system design. They operate across -40°C to +85°C, are certified for safety standards, and are ideal for industrial, communication, instrumentation, and battery-powered applications with limited PCB space.
TRACO POWER THD101223N DC/DC Converter Specifications:
- Input Voltage Range: 12VDC, 24VDC, 48VDC with surge voltages up to 50V and 100V respectively
- Output Voltages: 3.3VDC, 5.1VDC, 12VDC, ±12VDC, ±15VDC, with currents up to 3A
- Efficiency: Up to 89%, switching frequency: 400 kHz
- Ripple and Noise: 85mV peak-to-peak (20 MHz bandwidth)
- Isolation Voltage: 1500VDC (60 seconds), Capacitance: 1200pF, Resistance: >1000 MΩ at 500VDC
- Operating Temperature: -40°C to +85°C, Storage: -50°C to +125°C with derating above 70°C
- Dimensions: 20.3mm x 10.2mm x 31.8mm (WxHxD), Weight: 173g
- Compliance: UL/cUL 60950-1, IEC/EN 60950-1, RoHS, REACH, EN 55022 class A EMC
- Protection Features: Short circuit, overload, overvoltage, no minimum load required
- Soldering Temperature: Max 260°C for 10 seconds
Buy the Buy TracoPower THD101223N Part Number 10W Isolated DC/DC Converter Online
Experience the highest quality with TracoPower's THD series 10W isolated DC/DC converters. Compact, easy to integrate, with wide input voltage ranges (12V, 24V, 48V), they deliver up to 89% efficiency and feature internal EMI filtering meeting EN 55022 Class A standards. Designed for demanding industrial, instrumentation, and communication applications, these converters include comprehensive protections, operate across a broad temperature spectrum, and come with certifications for safety and EMC compliance. Simplify your design with these reliable, low-noise power solutions that ensure stability and performance in space-constrained environments.
Buy TracoPower THD101223N now and experience unmatched reliability and high efficiency for industrial and communication systems.
Frequently Asked Questions
Where can I buy TRACO POWER THD101223N?
You can click on the BUY or RFQ button to purchase THD101223N from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THD101223N?
You can download the THD101223N datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THD101223N?
TRACO POWER
