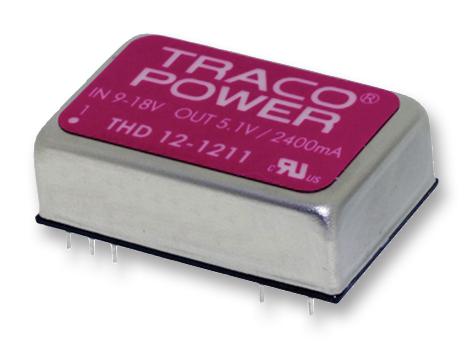

TRACO POWER THD121211 DC/DC Converter
The THD 12 series provides high-performance, isolated 12W DC/DC converters in a compact DIP-24 package, suitable for industrial, instrumentation, and communication applications. Featuring high efficiency up to 88%, 1500V I/O isolation, and built-in filters for input and output, these converters ensure reliable power supply with minimal external components. They offer wide input ranges, overvoltage, overload, and short-circuit protections, along with remote ON/OFF control. Operating temperatures from -40°C to +85°C and a robust shielded metal case make them ideal for space-constrained industrial environments demanding durability and stable performance.
TRACO POWER THD121211 DC/DC Converter Specifications:
- Input voltage range: 2.5V to 75V, with models for 12V, 24V, and 48V inputs
- Output voltages: 2.5V, 3.3V, 5.1V, 12V, 15V, 18V, 36V, 75V with respective currents up to 3500mA
- Efficiency: Up to 88%
- Isolation voltage: 1500VDC
- Operating temperature: -40°C to +85°C with derating
- Input filter compliant with EN 55022, class A
- Remote On/Off control with open circuit or 3-12V activation
- Built-in short-circuit, overload, and overvoltage protection
- Mechanical case: Shielded metal, non-conductive baseplate, epoxy potting
- Dimensions: DIP-24 package, approximately 19.2mm x 11.4mm x 10mm
- Start-up voltage: 9VDC to 36VDC depending on input model
- Switching frequency: ~400 kHz
Buy the Buy Traco Power DC/DC Converter THD 12 Series Part Number THD121211 Online
Secure your Traco Power DC/DC Converter THD 12 series online today. Designed for industrial, instrumentation, and communication applications, this high-performance 12W converter delivers up to 88% efficiency, excellent electrical isolation, and multiple protections. Its compact DIP-24 case, wide input range, and built-in filters facilitate easy integration into space-constrained projects. Ensure durability and dependable operation with these robust power modules, suitable for applications requiring reliable, low-noise power within industrial environments. Purchase now for fast delivery and exceptional quality.
Order your Traco Power SeriesTHD121211 12W DC/DC Converter today and ensure reliable, high-efficiency power for industrial and communication systems.
Frequently Asked Questions
Where can I buy TRACO POWER THD121211?
You can click on the BUY or RFQ button to purchase THD121211 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THD121211?
You can download the THD121211 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THD121211?
TRACO POWER
