TRACO POWER TEQ1607212WIR Industrial DC/DC Converter
The TEQ 160WIR series from Tracopower consists of high-performance, 160W isolated DC/DC converters housed in rugged, sealed metal enclosures. Designed for industrial applications where PCB mounting is not feasible, these modules are mounted directly on chassis. They feature an ultra-wide 4:1 input voltage range, reverse input protection, output voltage trimming, remote on/off, undervoltage lockout, soft-start, output current limiting, overvoltage protection, and automatic recovery short circuit protection. Certified according to IEC/EN 60950-1 and UL safety standards, they are also approved for railway applications (EN 50155). The converters support nominal inputs of 48VDC or 110VDC with outputs of 12VDC, 24VDC, 28VDC, or 48VDC, delivering up to 13A, 6.5A, 5.5A, or 3.2A respectively, with efficiencies up to 90%. They feature high thermal performance, low ripple and noise, and operate within a temperature range of -40°C to 105°C, making them suitable for demanding industrial environments.
TRACO POWER TEQ1607212WIR Industrial DC/DC Converter Specifications:
- Input Voltage: 12 VDC (9.6 ~ 13.2), 19 - 75 VDC, 48 VDC (38.4 - 52.8), 110 VDC (93 - 126), 160 VDC range
- Output Voltage: 12 VDC, 24 VDC, 28 VDC, 48 VDC
- Maximum Output Current: 13A, 6.5A, 5.5A, 3.2A respectively
- Efficiency: Up to 90%
- Operating Temperature: -40°C to +105°C, up to +75°C without derating
- Isolation Voltage: 2250 VDC input/output, 1600 VDC input/case
- Ripple and Noise: 125mVp-p to 350mVp-p depending on model
- Protection Features: Short circuit, overload, overvoltage, and reverse polarity
- Certifications: IEC/EN 60950-1, UL 508, UL 60950-1, EN 50155 railway approval
- Dimensions: Rugged sealed metal case, approximately 103.2mm x 87.6mm x 74.2mm, weight 800g

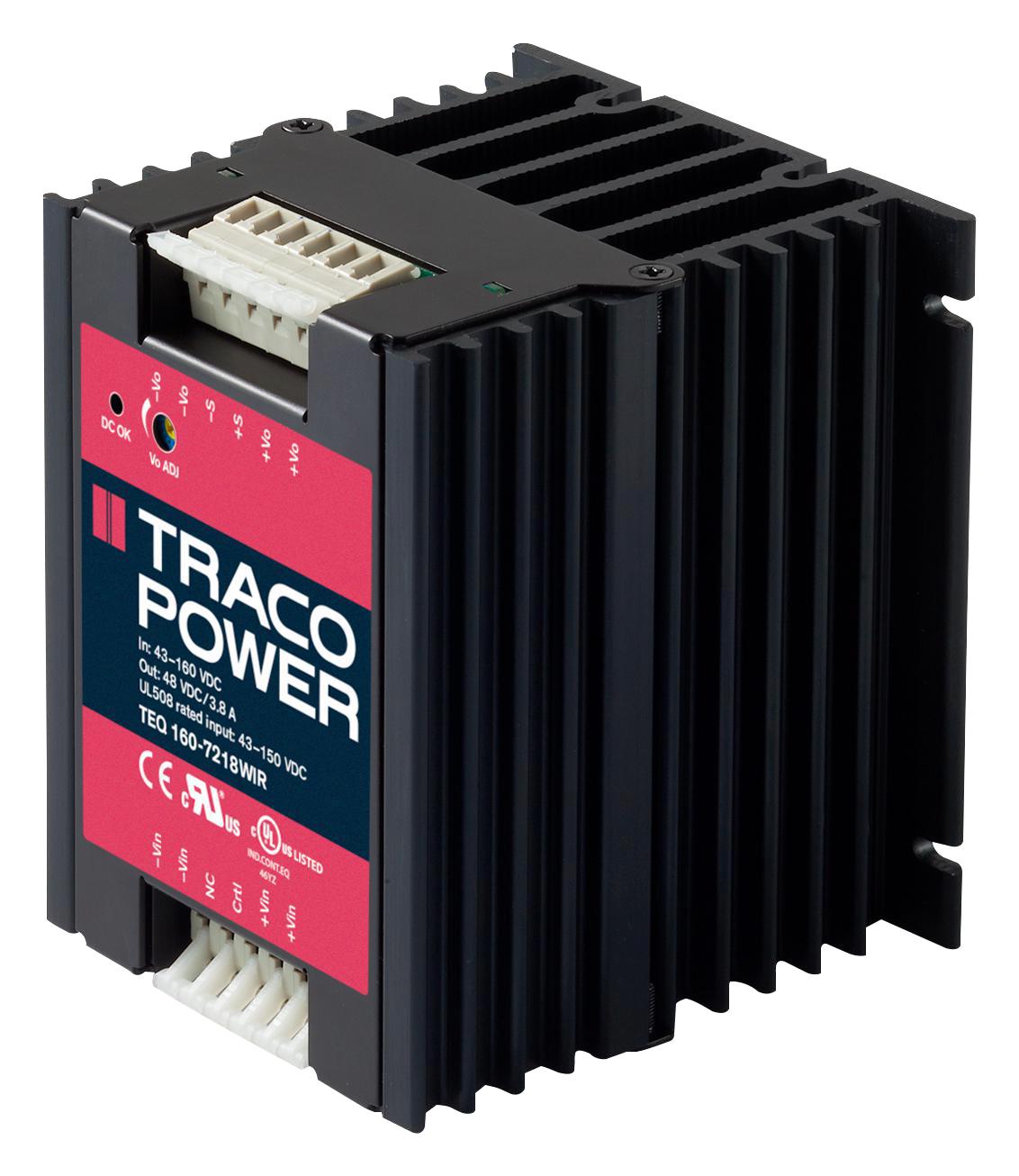

Buy the Tracopower Series TEQ 160WIR DC/DC Converter: TEQ1607212WIR
Secure your power management needs with Tracopower TEQ1607212WIR high-performance 160W industrial DC/DC converter. Featuring an ultra-wide input range, rugged sealed housing, remote On/Off, and high efficiency up to 90%, it guarantees reliable operation even in harsh environments. Designed for demanding industrial and railway applications, it supports various output voltages up to 48V, with excellent thermal performance from -40°C to +105°C. Easy to install and compliant with safety standards, this converter ensures optimal power delivery for critical projects.
Buy Tracopower TEQ1607212WIR high-efficiency industrial DC/DC converter now and ensure reliable power for demanding applications.
Frequently Asked Questions
Where can I buy TRACO POWER TEQ1607212WIR?
You can click on the BUY or RFQ button to purchase TEQ1607212WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEQ1607212WIR?
You can download the TEQ1607212WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEQ1607212WIR?
TRACO POWER
