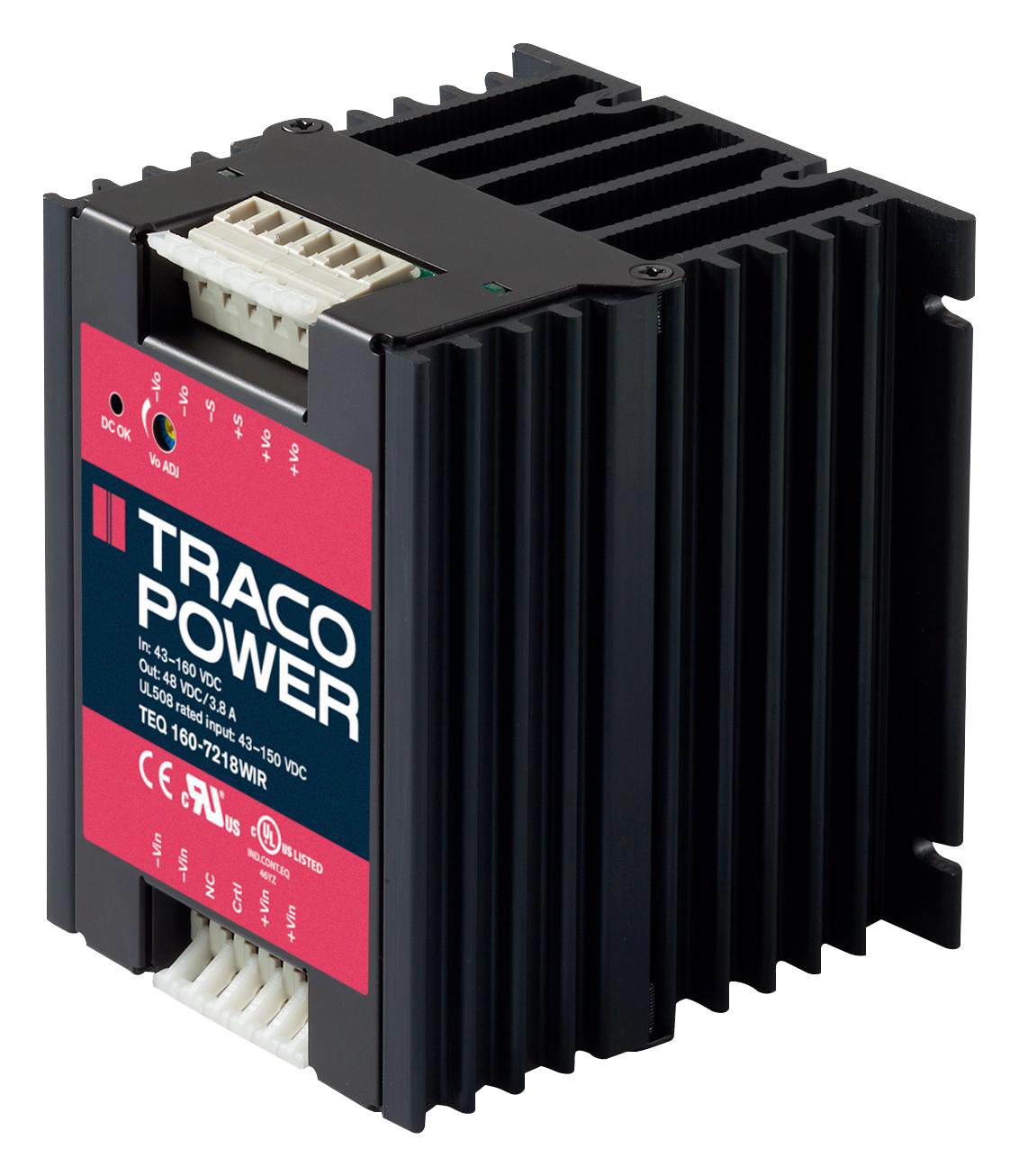

TRACO POWER TEQ1607215WIR High Efficiency Industrial Power Converter
The TEQ 160WIR series from TracoPower consists of 160-watt isolated high-performance DC/DC converters housed in a rugged, sealed metal casing. Designed for industrial applications where PCB mounting is not possible, these modules can be mounted on chassis. They feature an ultra-wide 4:1 input voltage range with reverse voltage protection, making them suitable for battery-powered systems. The series offers multiple output voltages, including 12V, 24V, 28V, and 48V, with maximum output currents reaching up to 15A, depending on the model. They provide high efficiency up to 90%, advanced protection features such as output voltage trimming, remote on/off, undervoltage lockout, soft-start, overvoltage protection, and short circuit recovery. Certified for safety standards IEC/EN 60950-1, UL 508, CSA, and EN 50155 for railway applications, and compliant with electromagnetic compatibility requirements. Operating temperature ranges from -40°C to 105°C, with no derating up to 75°C, and they are suitable for use in harsh environments with high thermal convection performance.
TRACO POWER TEQ1607215WIR High Efficiency Industrial Power Converter Specifications:
- Power: 160 Watts
- Input Voltage Range: 9.6 to 75 VDC, 43 to 160 VDC, 110 VDC nominal models
- Output Voltages: 12V, 24V, 28V, 48V
- Maximum Output Current: 3.2A to 75A depending on model
- Efficiency: Up to 90%
- Operating Temperature: -40°C to +105°C, no derating up to 75°C
- Dimensions: Approximately 103.2 x 87.6 x 74.2 mm
- Weight: 800g
- Isolation Voltage: 2,250 VDC (Input/Output), 1,600 VDC (Input/Case)
- Protection: Output voltage trimming, remote on/off, undervoltage lockout, overvoltage, short circuit
- Certification: IEC/EN 60950-1, UL 508, CSA, EN 50155
- Thermal Impedance: 1.45 K/W
- Switching Frequency: 250 kHz
- Ambient Humidity: 5% to 95% RH, non-condensing
- Compliance: RoHS, Reach, EN 45545-2 flammability
Buy the Buy TracoPower DC/DC Converter Part Number TEQ1607215WIR Online
Purchase the TracoPower TEQ 160WIR series online today for robust, high-performance power conversion suitable for industrial, railway, and battery-operated applications. With an ultra-wide input voltage range, efficiency up to 90%, and key safety certifications, this rugged, sealed module guarantees reliable operation even in harsh environments. Its compact design, comprehensive protections, and compliance with international standards make it the ideal choice for demanding power management needs. Ensure your project’s success by simplifying procurement with our fast online ordering process for this proven, reliable power module.
Order your TracoPower Series TEQ 160WIR 160 Watt high-efficiency converter today and ensure reliable power delivery in industrial and railway projects.
Frequently Asked Questions
Where can I buy TRACO POWER TEQ1607215WIR?
You can click on the BUY or RFQ button to purchase TEQ1607215WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEQ1607215WIR?
You can download the TEQ1607215WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEQ1607215WIR?
TRACO POWER
