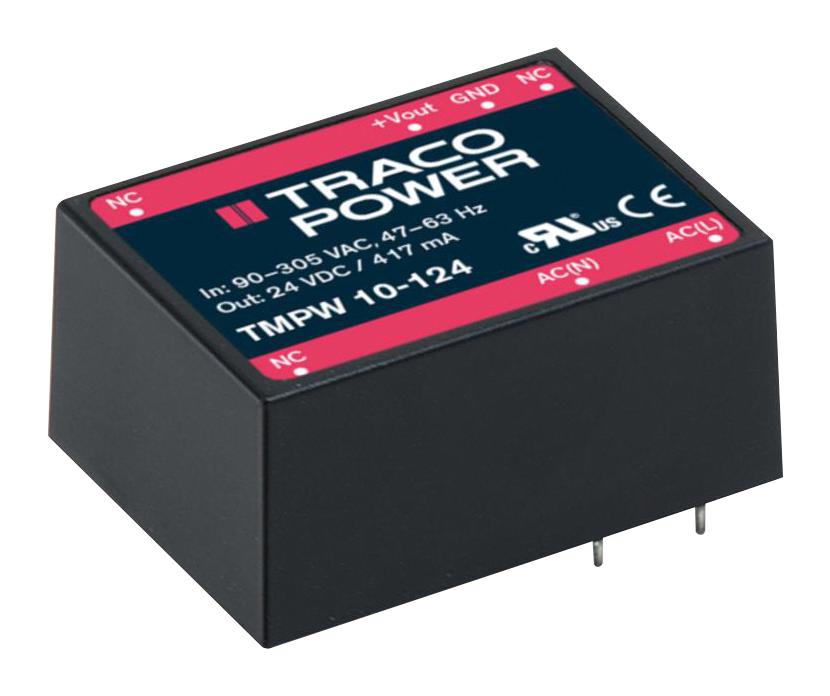

TRACO POWER TMPW10124 Power Supply Module
The TMPW 10 Series is a compact 10 Watt AC/DC power supply designed for industrial and household applications. Featuring a wide input voltage range of 90-305 VAC, it offers high efficiency up to 86% and a built-in EN 55032 class B filter. Encapsulated in a small plastic case measuring 1.46 x 1.08 inches, it supports operating temperatures from -40°C to +70°C. Certified according to IEC/EN/UL 62368-1 and EN 60335-1, it provides reinforced insulation, 47000 VAC 1/0-isolation, and protection class II readiness, suitable for safety-critical environments.
TRACO POWER TMPW10124 Power Supply Module Specifications:
- Input Voltage AC Range: 90-305 VAC, DC Range: 100-250 VDC
- Input Frequency: 47-63 Hz (designed for 47-440 Hz)
- Output Power: 10 Watt
- Output Voltages: 5 VDC, 12 VDC, 15 VDC, 24 VDC
- Output Current: 2,000 mA, 833 mA, 667 mA, 417 mA respectively
- Efficiency: up to 86%
- Operating Temperature Range: -40°C to +70°C
- Isolation Voltage: 47000 VAC 1/0-isolation, 4000 VAC input to output
- Ripple and Noise: 60-240 mVp-p depending on model
- Protection: Continuous short circuit, Overvoltage (105-145% of Vout thermal), Overvoltage category II
- Safety Standards: IEC 62368-1, UL 62368-1, EN 60335-1
- Housing Material: UL 94 V-0 rated plastic, Potting Material: Silicone
- Dimensions: 1.46 x 1.08 inches, Weight: 31 g
- Environmental Durability: Operation at 5,000 m altitude, vibration resistant (IEC 60068-2-6).
Buy the Traco Power Series TMPW 10 Power Supply: TMPW10124
Purchase the Traco Power TMPW 10 power supply today and enjoy reliable energy conversion with high efficiency up to 86%. Its compact size of 1.46 x 1.08 inches allows easy integration into various systems. Features include a wide input voltage range of 90-305 VAC, reinforced insulation, and certified safety standards, making it suitable for industrial and household applications. The power supply operates efficiently across a temperature range from -40°C to +70°C and provides continuous short circuit protection, ensuring durability and safety in demanding environments.
Buy Traco Power TMPW 10 power supply now and experience unmatched reliability and performance in compact design for industrial and household needs.
