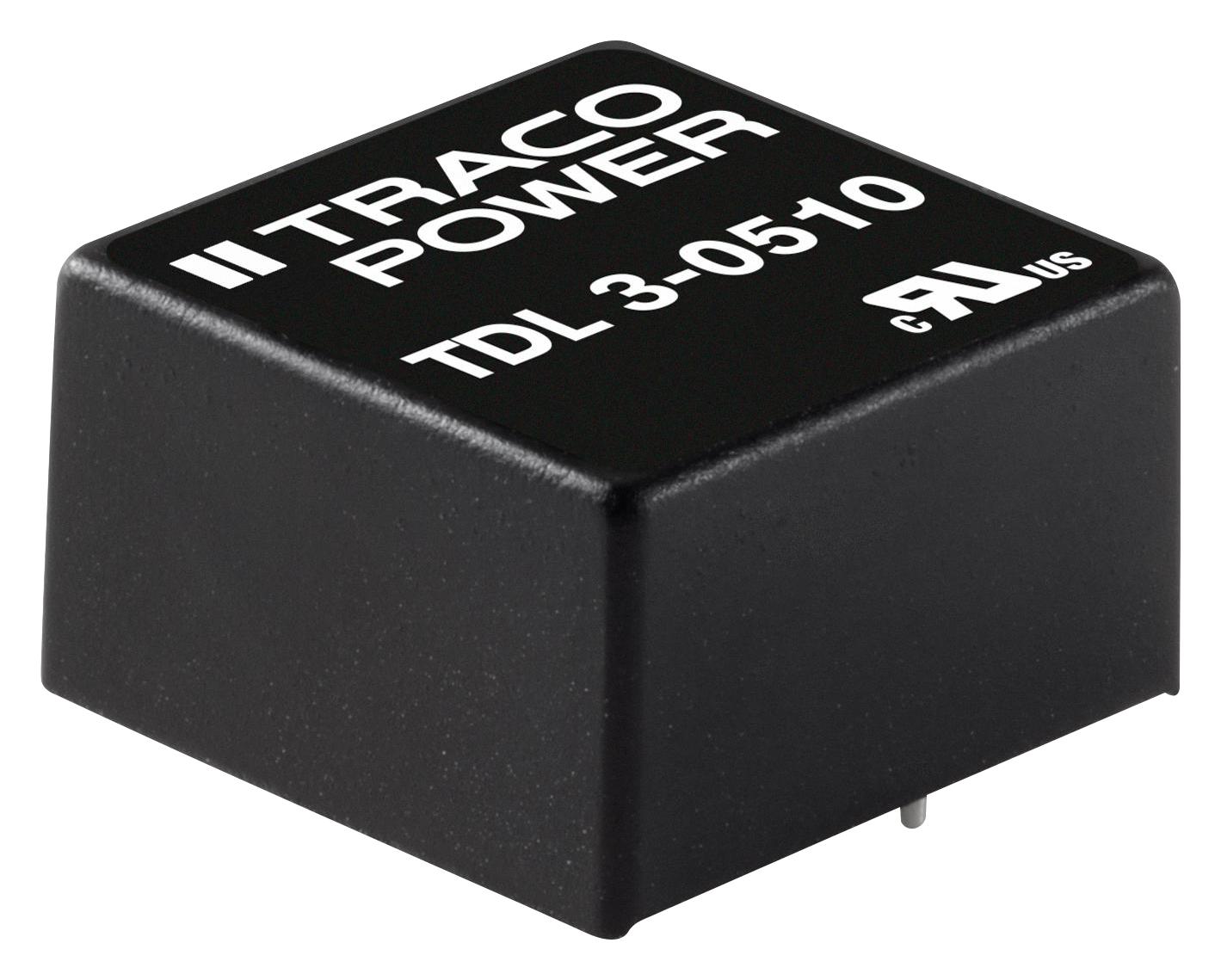

TRACO POWER TDL30523 DC/DC Converter
The TDL 3 series from TracoPower consists of 3W, single and dual output DC/DC converters designed for compact applications. These converters feature a wide 2:1 input voltage range and are packaged in a small DIP form factor measuring 14mm wide, 8mm high, and 14mm deep. They offer continuous, automatic recovery from short circuits and overload conditions, ensuring reliable operation. The series supports various input voltages (5VDC, 12VDC, 24VDC, 48VDC) and provides multiple output voltage options including 3.3VDC, 5VDC, 12VDC, 15VDC, as well as ±5VDC, ±12VDC, and ±15VDC. The maximum output currents range from 100mA to 600mA depending on the model. With efficiency up to 87% at a switching frequency of at least 100kHz, these converters also feature high isolation ratings—1500VDC (60 sec)—with minimal capacitance and resistance. They meet UL 60950-1 and IEC/EN 60950-1 safety standards, operate reliably between -40°C and 70°C, and come with a 3-year warranty.
TRACO POWER TDL30523 DC/DC Converter Specifications:
- Power: 3 Watts
- Input voltage range: 4.5 VDC to 36 VDC with 2:1 ratio
- Output voltage options: 3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V
- Maximum output current: 200mA to 600mA depending on model
- Efficiency: up to 87% at 100kHz switching frequency
- Isolation voltage: 1500VDC for 60 seconds
- Operating temperature: -40°C to +70°C
- Thermal resistance: Case temperature up to +95°C
- Protection: Short circuit and overload protection
- Certifications: UL 60950-1, IEC/EN 60950-1
- Physical: Small DIP package 14mm wide, 8mm high, 14mm deep
- Soldering temperature: Max 260°C for 10 seconds
- MTBF: >3,450,000 hours
Buy the Buy Traco Power TDL Part Number TDL30523 Online
Purchase the Traco Power TDL Series 3W DC/DC Converter TDL30523 online today to enjoy fast delivery and a proven solution for your power management needs. This compact, highly efficient converter offers all necessary safety standards compliance, high isolation of 1500VDC, and multiple output voltages, making it ideal for space-constrained applications. With automatic recovery from short circuit conditions and a wide operating temperature range, it guarantees reliable performance in diverse environments. Get your TDL30523 now to experience stable power conversion tailored for demanding electronic projects and industrial automation.
Order your Traco Power TDL Series3W DC/DC Converter TDL30523 today and ensure reliable, efficient power conversion for your compact electronics projects.
Frequently Asked Questions
Where can I buy TRACO POWER TDL30523?
You can click on the BUY or RFQ button to purchase TDL30523 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TDL30523?
You can download the TDL30523 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TDL30523?
TRACO POWER
