TRACO POWER THI30512 High Isolation DC/DC Converter
The THI 3 series is a high isolation DC/DC converter family designed for medical and industrial environments. Encapsulated in a DIP-24 package, these converters offer reinforced insulation with an input-to-output isolation voltage of 4000 VACrms rated for 300 VACrms working voltage. They support input voltages of 5V, 12V, and 24V DC, providing regulated output voltages with efficiencies up to 64%. Featuring low leakage current, short circuit protection, and compliance with IEC and ANSI safety standards, they are ideal for medical instrumentation and industrial control applications requiring certified safety insulation.
TRACO POWER THI30512 High Isolation DC/DC Converter Specifications:
- Input Voltage Range: 5V, 12V, 24V DC
- Output Voltage: 5V, 12V, 15V, 24V DC
- Maximum Output Current: 600 mA (5V), 250 mA (12V), 200 mA (15V/24V)
- Efficiency: up to 64%
- Isolation Voltage: 4000 VACrms, rated for 300 VACrms working voltage
- Isolation Capacitance: 220 pF per output, Input/Output capacitance: 20 pF
- Leakage Current: 2 pA at 240VAC
- Temperature Range: Operating from -40°C to +75°C, storage from -55°C to +125°C
- Dimensions: Encapsulated DIP-24 package, weight 12.4g
- Switching Frequency: 25-60 kHz
- Compliance: IEC/EN 60601-1, IEC/EN 60950-1, RoHS, Reach
- Safety Standards: Certified for medical and industrial safety with reinforced and supplementary insulation
- Input Surge Voltage: 75V (5V model), 15V (12V model), 30V (24V model)
- Ripple & Noise: 50 mV peak-to-peak
- Protection: Short circuit with automatic recovery, no minimum load required

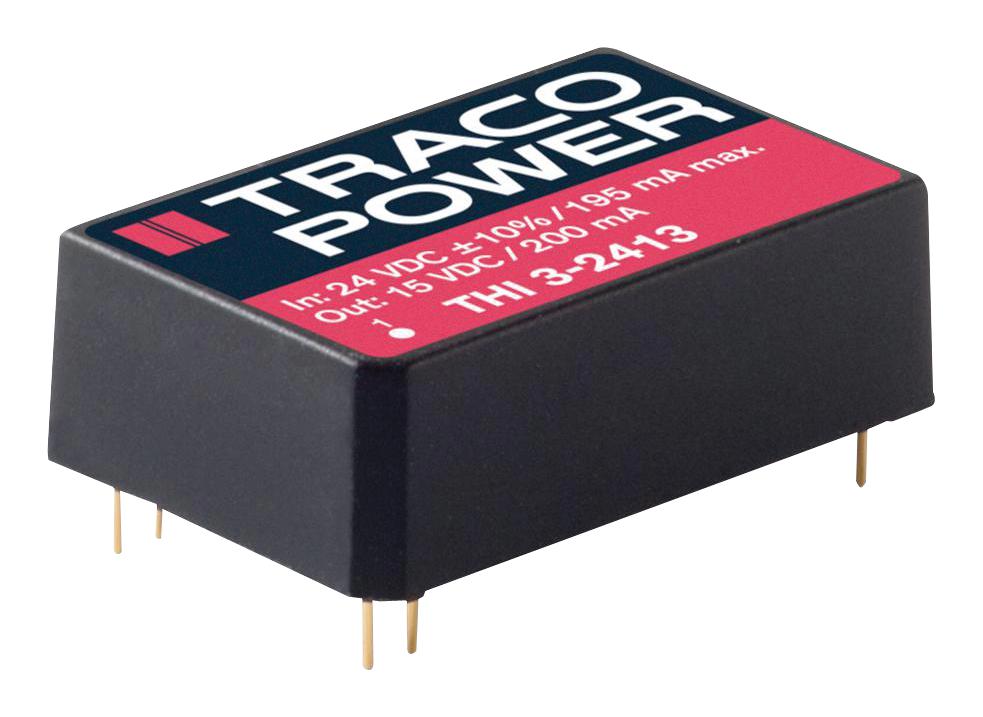

Buy the Buy Traco Power THI 3 Series Part Number THI 3-0512 Online
Purchase the Traco Power THI 3 series DC/DC converter online for reliable, safe power conversion in medical and industrial applications. Featuring reinforced insulation, low leakage current, and wide temperature range, these converters meet strict safety standards including IEC 60601-1 and IEC 60950-1. Its encapsulated DIP-24 package ensures durability and ease of installation. Suitable for regulated power supplies in healthcare equipment, test systems, and industrial controls, ensuring compliance, safety, and performance in critical environments.
Buy Traco Power THI 3-0512 now and experience unmatched reliability and performance in medical safety and industrial control.
Frequently Asked Questions
Where can I buy TRACO POWER THI30512?
You can click on the BUY or RFQ button to purchase THI30512 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THI30512?
You can download the THI30512 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THI30512?
TRACO POWER
