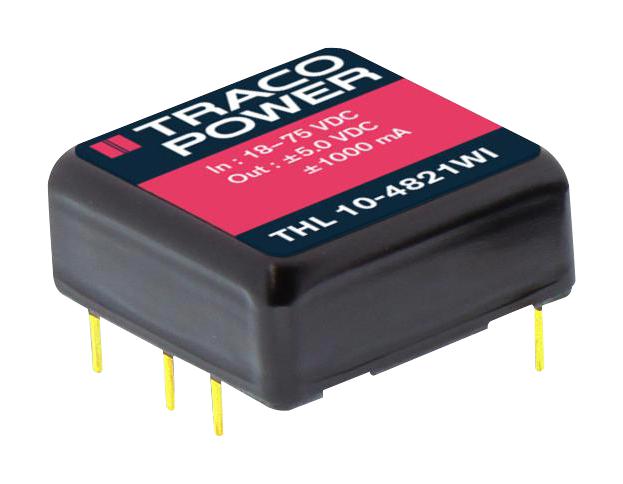

TRACO POWER THL104815WI DC-DC Converter
The TracoPower THL 10-4815WI is a 10W DC-DC converter from the THL 10WI series. It features a compact 1” x 1” metal case with a shielded design and an isolated baseplate. The converter offers an ultra-wide 4:1 input voltage range from 18VDC to 75VDC (nominal 48VDC), delivering a fixed 24VDC output current up to 410mA with typical efficiency of 86%. It complies with safety standards UL/cUL 60950-1 and IEC/EN 60950-1, and provides I/O isolation with 1500VDC voltage, greater than 1000MΩ resistance, and a maximum capacitance of 1200pF. Features include remote On/Off control, short circuit and overvoltage protection, and the ability to operate at temperatures up to +85°C with an optional heat sink. Suitable for industrial applications such as instrumentation and distributed power architectures in communication and industrial electronics.
TRACO POWER THL104815WI DC-DC Converter Specifications:
- Input Voltage Range: 18VDC to 75VDC
- Output Voltage: 24 VDC
- Output Current Max: 410 mA
- Efficiency: Typical 86%
- Isolation Voltage: 1500 VDC
- Isolation Resistance: >1000 MΩ
- Isolation Capacitance: 1200 pF max.
- Operating Temperature Range: -40°C to +85°C with heat sink, -40°C to +75°C without
- Power: 10 Watts
- Case Material: Metal
- Potting Material: Epoxy UL 94V-0 rated
- Dimensions: 1” x 1” (25.4 mm x 25.4 mm)
- Soldering Temperature: Max +260°C / 10s
- Humidity: 95% RH max.
- Switching Frequency: 400 kHz typ.
- Safety Standards: UL/cUL 60950-1, IEC/EN 60950-1
- Certifications: UL, cUL, IEC/EN
- Weight: 15 g
Buy the Buy TracoPower DC-DC Converter Part Number THL104815WI Online
Experience the convenience of purchasing the TracoPower THL 10-4815WI online, a dependable 10W DC-DC converter suitable for industrial applications. Compact with a 1” x 1” metal case, it offers an ultra-wide input range from 18VDC to 75VDC, delivering a fixed 24VDC output at 410mA with 86% efficiency. Equipped with remote On/Off, excellent isolation of 1500VDC, and capable of operating at temperatures up to +85°C with heat sink, this converter is perfect for instrumentation, communication, and industrial power architectures. Order now for fast, reliable delivery and robust performance.
Buy TracoPower THL104815WI now and ensure reliable power conversion in industrial and communication systems with high temperature tolerance and safety compliance.
Frequently Asked Questions
Where can I buy TRACO POWER THL104815WI?
You can click on the BUY or RFQ button to purchase THL104815WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THL104815WI?
You can download the THL104815WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THL104815WI?
TRACO POWER
