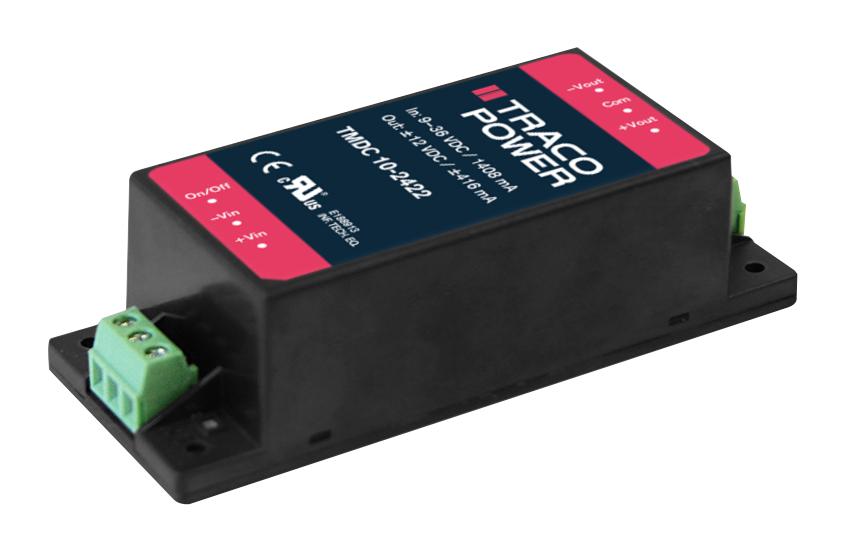

TRACO POWER TMDC102415 industrial DC/DC converter
The TMDC 10 series by Traco Power offers fully encapsulated 10-watt DC/DC converter modules designed for harsh industrial environments. Featuring an ultra-wide 4:1 input voltage range of 9-36 VDC or 18-75 VDC, these modules include integrated filters for emission and immunity standards (EN 55032 and EN 55035). They provide excellent temperature operation from -40°C to +80°C without derating, 3000 VDC isolation, and safety approvals (UL 62368-1). With hybrid protection circuits, DC-OK, remote on/off, and reliable performance, these modules are ideal for industrial automation, control systems, and power supply applications requiring high EMC immunity and robust safety features.
TRACO POWER TMDC102415 industrial DC/DC converter Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC
- Output Power: 10 Watts
- Output Voltage: 5.1 VDC, 12 VDC, 15 VDC, 24 VDC, -12 VDC, -15 VDC, -24 VDC, 24 VDC (dual outputs)
- Input Current at no load: 24 V models 30 mA typ., 48 V models 20 mA typ.
- Input Surge Voltage: 50 VDC (24 V), 100 VDC (48 V)
- Operating Temperature: -40°C to +80°C without derating
- Isolation Voltage: 3000 VDC
- EMC Emissions: EN 55032 class A, FCC Part 15 class A
- EMC Immunity: EN 55035, EN 61000-4-x standards
- Efficiency: up to 86%
- Protection: Overload, undervoltage, short circuit, automatic recovery
- Isolation Resistance: ≥17 GΩ
- Dimensions: 3.11 x 1.34 x 0.87 inches (79 x 34 x 22 mm)
- Housing Material: UL 94V-0 rated plastic
- Connection: Screw terminals
- Safety Certifications: UL 62368-1, IEC 62368-1
- Reliability: MTBF approximately 4.1 million hours
Buy the Buy Traco Power DC/DC Converter Part Number TMDC102415 Online
Secure your industrial power needs by ordering the Traco Power TMDC102415 series online today. Designed for demanding environments, these 10-watt modules feature wide input ranges, high EMC immunity, and robust safety certifications. With integrated filters, high efficiency, and reliable protection mechanisms including overload and short circuit protection, these modules are ideal for automation, control, and distributed power supply applications. Easy to install with screw terminal connections and UL certified safety, ensuring quality and durability for your critical projects.
Order your Traco Power Series TMDC102415 10 Watt industrial DC/DC converter today and ensure reliable power for your harsh environment projects.
Frequently Asked Questions
Where can I buy TRACO POWER TMDC102415?
You can click on the BUY or RFQ button to purchase TMDC102415 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMDC102415?
You can download the TMDC102415 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMDC102415?
TRACO POWER
