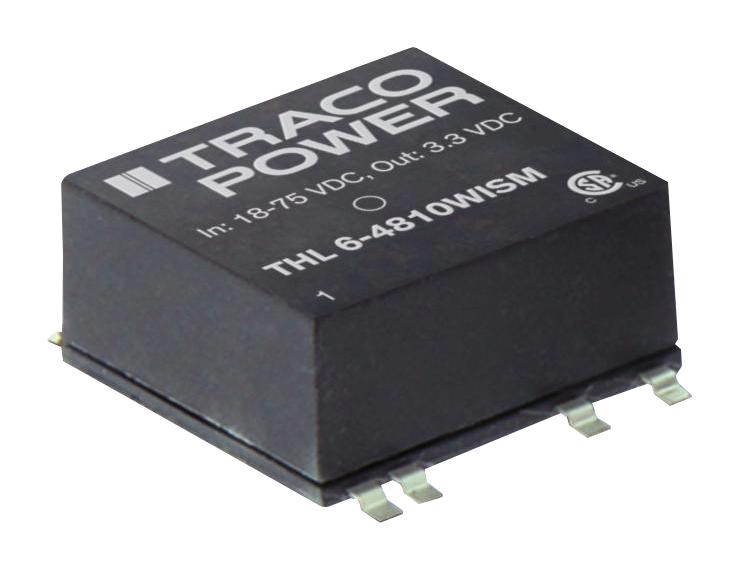

TRACO POWER THL64811WISM DC/DC Converter
The THL 6WISM series from TracoPower consists of compact 6W DC/DC converters in SMD packages, designed for easy integration into electronic systems. These converters feature fully regulated outputs with selectable voltages including 3.3V, 5V, 12V, 15V, and 24V, as well as bipolar options of ±5V, ±12V, and ±15V. They support input voltages of 24VDC and 48VDC across a wide 4:1 input range, with maximum output currents up to 1450mA. The converters offer excellent efficiency up to 83% at a switching frequency of 330kHz. They include built-in features such as remote on/off control, short circuit protection, and internal filtering that meets EN55022 Class A standards without external components, simplifying design. Isolation specifications include 1500VDC I/O isolation voltage (tested for 60 seconds), with high resistance (>1GΩ at 500VDC) and low capacitance. The ripple and noise level is capped at 100mVp-p within a 20MHz bandwidth. The compact dimensions are 20.3mm x 10.5mm x 22mm. These converters comply with UL/cUL 60950-1 and IEC/EN 60950-1 safety standards, come with a 3-year warranty, and operate reliably across temperatures from -40°C to +75°C with natural convection cooling. Ideal applications include data, telecom, instrumentation, and industrial electronics.
TRACO POWER THL64811WISM DC/DC Converter Specifications:
- Input Voltage Range: 24VDC and 48VDC, 4:1 wide input range
- Output Voltages: 3.3V, 5V, 12V, 15V, 24V, ±5V, ±12V, ±15V
- Output Current: up to 1450mA
- Efficiency: up to 83%
- Switching Frequency: 330kHz
- Isolation Voltage: 1500VDC (I/O isolation)
- Isolation Resistance: >1GΩ at 500VDC
- Capacitance: 100-330pF depending on output
- Ripple & Noise: 100mVp-p max. (20 MHz bandwidth)
- Operating Temp: -40°C to +75°C
- Dimensions: 20.3mm x 10.5mm x 22mm
- Weight: 78g
- Certifications: UL, cUL, IEC 60950-1
- Safety Standards: IEC 60950-1, UL 60950-1
- Compliance: Reach, RoHS
- Ingress Protection: IP50 (not sealed)
- Surge Voltage: 50V (24V models), 100V (48V models)
Buy the TracoPower THL64811WISM – Reliable Compact Power Supply for Industrial Applications
Purchase the TracoPower THL64811WISM DC/DC converter online today for a compact, reliable power solution with regulated outputs, high efficiency, and excellent safety standards. Ideal for industrial electronics, telecom, and instrumentation, this converter offers wide input voltage support, remote on/off control, and built-in filtering that meets EN55022 Class A. With low ripple, high isolation, and operating temperatures from -40°C to +75°C, it ensures stable power delivery even in demanding environments. Enhance your system’s performance by ordering now.
Buy TracoPower THL64811WISM now and experience unmatched reliability and performance in your industrial electronics projects.
Frequently Asked Questions
Where can I buy TRACO POWER THL64811WISM?
You can click on the BUY or RFQ button to purchase THL64811WISM from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THL64811WISM?
You can download the THL64811WISM datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THL64811WISM?
TRACO POWER
